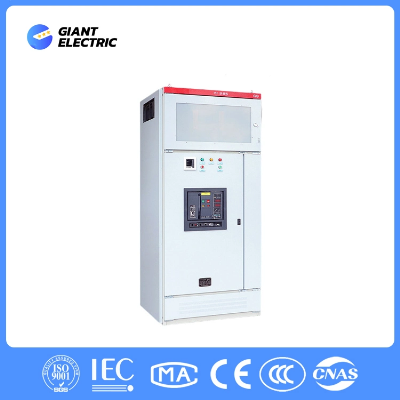

Hv/LV/Mv Electric PC/Mcc Power Distribution Equipment Ggd Switchgear

PRODUCT DETAILSGGD type low voltage fixed switchgear is suitable for power users such as power plant substation,industrial and mining enterprises as power conversion, distribution and control of power, lighting and distribution equipment inpower distribution system with AC 50Hz, rated working voltage 380V and rated current up to 3150A.The product has high breaking capacity, rated short-time tolerance current up to 50kA.The line scheme has the characteristics of clever words, convenient combination, strong practicability and novel structure.This product is one of the representative products of the assembled and fixed panel switchgear in China.This product conforms to: GB7251 "low voltage switchgear and control equipment", IEC439 "low voltage switchgear and controlequipment" and other standards.  TECHNICAL PARAMETERmodelnominal voltage(V) rated current(A)Rated short circuit breaking currentRated short circuit tolerance currentRated peak tolerable currentGGD-1000-153801000151530600(630)400GGD-1600-303801500(1600)3030631000600GGD-31500-503803150505010525002000THE USE OF CONDITIONS 1.  Ambient temperature 2.  Altitude 3.  Relative humidity2000m and below.Not more than 50% at a maximum temperature of +40° C, and greater relative humidity is allowed at lower temperatures:(e.g. 90% at +20P) should be taken into account due to A change in temperature may have an occasional effect on condensation. 4.  The inclination between the equipment and the vertical plane shall not exceed 5. 5.  The equipment should be installed in the place where there is no severe vibration and impact, and where the electricalcomponents are not corroded.Note: if If the above conditions cannot be met, the user can negotiate with the company to solve the special requirements.COMPANY INFORMATIONWOORKSHOPContact UsCertifications SHIPPING PAYMEANT/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
