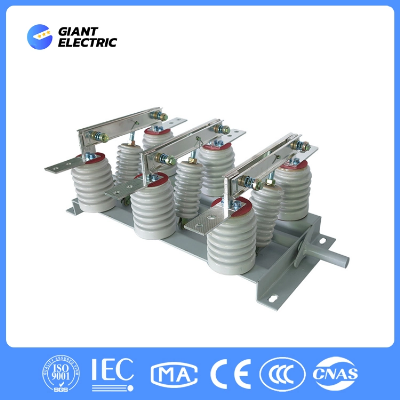

400A 630A 1000A 1250A Gn19-12 Disconnector Isolator Disconnect Switch

 Customized products can consult online customer service! PRODUCT DETAILSGN19-12 Disconnect SwitchDescription:        GN19-12(C) indoor HV disconnect switch applies to power system of rated voltage below 12kV.AC 50/60Hz. It is. equipped with CS6-1 manual-operating mechanism and is used to break and make circuits under no-load. There are additional pollution types, high-altitude types and power indicating types, It is made as perlEC62271-102.TECHNICAL PARAMETERThe technical parameters of the form are for reference only.Customized products can consult online customer service!ModelRated voltage (kV)Rated current (A)Rated short-time withstand current(kA/4s)Rated peak withstand current(kA)GN 19-12/400-12.51240012.531.5GN 19-12/630-20126302050GN19-12/1000-31.512100031.580GN19-12/1250-31.512125031.580GN19-12C/400-12.51240012.531.5GN19-12C/630-20126302050GN19-12C/1000-31.512100031.580GN19-1C2/1250-31.512125031.580ModelABCDGN19-12/400450446 185 4-14x24GN19-12/630470446 185 GN19-12/1000/1250510500 196 4-18X28GN19-12C/400420690 185 4-14X24GN19-12C/630430690 185 GN19-12C/1000/1250470745 196 4-18X28THE USE OF CONDITIONS 1. Altitude: 1000m2. Ambient temperature:-25~+40ºC3. Relative humidity: daily average 95ºC, monthly average 90ºC4. Earthquake intensity: 8 degree5. Applicable occasions should free from inflammable explosives, corrosives and severe vibrationCOMPANY INFORMATIONZhejiang ZheGui Electric Co., Ltd established in 2013. We are located in Zhejiang with convenient transportation access and developed electrical market. We are group of private enterprises that hold the production license issued by the former ministry of energy and ministry mechanical and electrical engineering.The company has nearly 60 million fixed assets and more than 60 employees, covering 23133 square meters. We are specialized in R&D production of complete switchgear of high and low voltage equipment such as prefabricated substation, distribution cabinet/box, drawer cabinet, ring network cabinet, inflatable cabinet, etc.We owns three CNC bending machine, CNC shearing machine, CNC laser cutting machine and a series of advanced production equipment to further optimized the product structure and improve the efficiency of production. After nearly 7 years of development, it has passed ISO 9001-2000 quality system certification. All items produced by our own factory, so our advantages are: reliable quality and reasonable price. Gather the world's energy to delight your business. It's honorable for Zhegui to share your progress, brilliance and success!Contact UsFAQ Q1: Are you a factory or trading companyA1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive. Q2: How does your factory do regarding quality control?A2: All the products will be 100% checked before the shipment. Q3: When can I get the price?A3:Usually we quote within 24 hours after we get your inquiry. Q4: How could I get a sample?A4: if you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples. Q5: What is the price of shipping?A5: Depending upon the port of delivery, prices vary.
