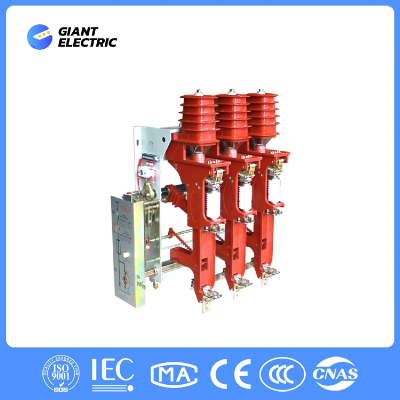

Fzn25-12D 12kv 630A Load Break Switch

PRODUCT DETAILSFZN25/FZRN25 type vacuum load switch Description:        FZN25/FZRN25 type vacuum load switch and composite apparatus, suitable for three-phase AC 50Hz ring network or terminal power supply and industrial electrical equipment. for load control and short circuit protection use, load switch open and close the closed-loop current, no-load transformer and cable charging current, composite apparatus can break any current till rated short circuit current. Adopt the straight move or isolating fracture and vacuum interrupter linkage. With the function of manual and electric operation.ZN25, FZRN25 special transmission structure design, arc extinguish chamber only withstand voltage in the moment of closing and breaking, small size, low price.ZN25, FZRN25 can realize isolation fracture and arc extinguish chamber fracture disposable operating FZN25, FZRN25 has a grounding switch mutual linkage grounding valve between the static contact and movable conductive cylinder, ensures safety and convenient maintenance. TECHNICAL PARAMETER  The technical parameters of the form are for reference only. Customized products can consult online customer service!No.project unitsparameterFZN25-12D/T630-20FZRN25-12D/T125-31.51The rated voltagekV122Rated frequencyHZ503Rated currentA6301254Rated insulation levelVoltage withstand 1min power frequencykVArc extinguishing chamber fracture 30;To the ground, interphase 42;Isolation fracture 48Lightning shock withstand voltagekVTo the ground, phase 75;Isolation fracture 855Rated dynamic stability current (peak)kA50-64S heat stabilized currentkA20-7Rated active load breaking currentA6301258Rated closed-loop breaking currentA6301259Rated cable charging break currentA101010Turn off the no-load transformer capacityKVA1250125011Rated short circuit breaking currentkA-31.512Rated transfer current, rated transfer currentA-200013Fuse type -SDLAJ-12 SFLAJ-1214Impactor outputs energyJ-2-5(medium)15Rated short circuit closing currentkA5016Ground switch rated dynamic stable currentkA50172S thermal stability current of ground switchkA2018Rated voltage of the auxiliary circuitVAC/CD:220/11019Mechanical lifetime10000THE USE OF CONDITIONS1.Ambient air temperature: upper limit +40ºC, lower limit-25ºC (allow storage at -30ºC), 24h average value is not higher than +35ºC2.Altitude: no more than 1000m3.Relative humidity: daily average value is not greater than 95%, the monthly average is not greater than 90%4.Earthquake intensity: do not exceed 8 degree5.The surrounding air is not corrosive and flammable gas, steam and other significant pollution6.No regular violent vibration7.Contamination grade: Il classRELATED PRODUCTS  COMPANY INFORMATION    Zhejiang ZheGui Electric Co., Ltd established in 2013. We are located in Zhejiang with convenient transportation access and developed electrical market. We are group of private enterprises that hold the production license issued by the former ministry of energy and ministry mechanical and electrical engineering.     The company has nearly 60 million fixed assets and more than 60 employees, covering 23133 square meters. We are specialized in R&D production of complete switchgear of high and low voltage equipment such as prefabricated substation, distribution cabinet/box, drawer cabinet, ring network cabinet, inflatable cabinet, etc.     We owns three CNC bending machine, CNC shearing machine, CNC laser cutting machine and a series of advanced production equipment to further optimized the product structure and improve the efficiency of production. After nearly 7 years of development, it has passed ISO 9001-2000 quality system certification. All items produced by our own factory, so our advantages are: reliable quality and reasonable price. Gather the world's energy to delight your business. It's honorable for Zhegui to share your progress, brilliance and success! Contact Us FAQQ1: Are you a factory or trading companyA1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive. Q2: How does your factory do regarding quality control?A2: All the products will be 100% checked before the shipment. Q3: When can I get the price?A3:Usually we quote within 24 hours after we get your inquiry. Q4: How could I get a sample?A4: if you can not buy our product in your local area, we will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples. Q5: What is the price of shipping?A5: Depending upon the port of delivery, prices vary./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
