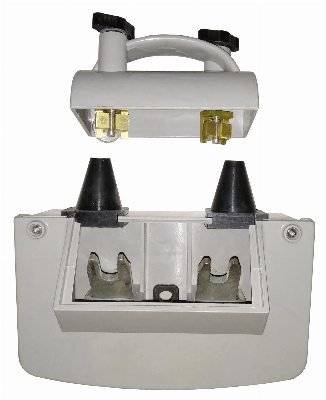

Low Voltage 400A Fuse Cut out

 Specifications:400A Pole Mounted Fused Cut-out1. Moulded in light grey glass reinforced polyester DMC.2. Accepts BS 88 J type fuse link. * Our StrengthMore than 35 years of production experience;New plant covers an area of 36216m2; employs 220 staffs;Continuous improvement and perfection of products;10~38KV voltage level selection;100~300A current level selection;High productivity, large spare parts inventory;CESI certificate and a number of domestic laboratory test certificationThe sample order is available.   Materials and parts1.Each fused cutout has fuse contacts and cable terminal plates which are manufactured from copper and bright tinned. 2.These plates incorporate M12 captive studs with nuts and washers for the reception of cable sockets (lugs) up to 300mm2 with copper or aluminium conductors. 3. For ease of mounting to either a wall or a wooden pole, the fused cutout is supplied with an M12 coach screw. 4.For cross-arm type mounting the fused cutout can be supplied with an M12 nut, bolt and washer.  Technical dataModleFixing arrangement54611-18400A Fused cutout for pole or wall mounting c/w M12 coach screw54611-06400A Fused cutout for cross-arm Mounting c/w M12 bolt,nut and washer58424-03Spare fuse carrier  Packing   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
