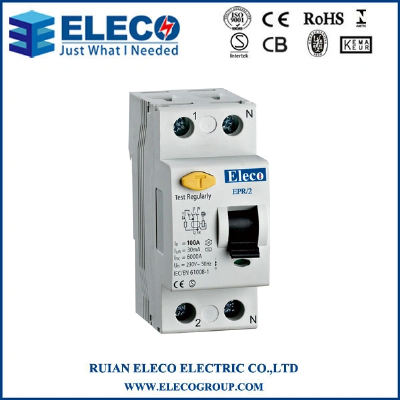

High Quality 4p Residual Current Circuit Breaker Epr Series

FeaturesWhen designing residual current devices, manufacturing technology and type of routine tests, the IEC/EN 61008 standards were considered. Important features are:Up to date dasignUser-friendly connection of conductors and busbarsResistance to current surges; unmanted tripping excludedSimple and solid fixing to a 35 mm mounting rail in compliance with EN 60715Additional colour display of main contacts position(red:contacts closed, green: contacts open) StandardConfirming to EN/IEC61008-1Rated conditional short-circuit current,Inc6kAProtectionGroud faultRated current,In16,25,32,40,63,80,100ANumber of Poles2(1+N),4(3+N) poleRated sensitivity currents, In10,30,100,300mARated residual non-operating current0.5* InRated impulse withstand voltage Uimp6000VRated voltage    2pole                             4pole230VAC230/400VACResidual current off-time at In≤0.1sRated residual Current making&breaking capacity Im500A for In=16,25,32,40A630A for In=63,80,100AType of tripElectro-magnatic releaseType of terminalLug type ang Pin typeTerminal capacityCables up to 35mm²Protection degreeIP20Installation35mm DIN railAbout usELECO Electric is one of the most specialized manufacturers and exporters for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Circuit Breaker(MCB),Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO),Switch -disconnector,Distribution Box, Moulded case circuit breaker(MCCB), air circuit breake (ACB), AC Contactor,Magnetic Dtarter, Motor Protection Circuit Breaker, Thermal Relay and K.W.H meter etc.The company takes the reputation as one of the largest manuafacturer of electro-magnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned international corporations for such projects.Experience in manufacturing under customers design, trade, biding project, OEM and competitive cooperation related to the new products & technology. Won approvals of CE, SEMKO, CB, KEMA, FI, CCC and ISO9001 Quality System Certificate etc. Products being popular around the world, such as Europe, America, Southeast Asia, Middle East, Africa, etc./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
