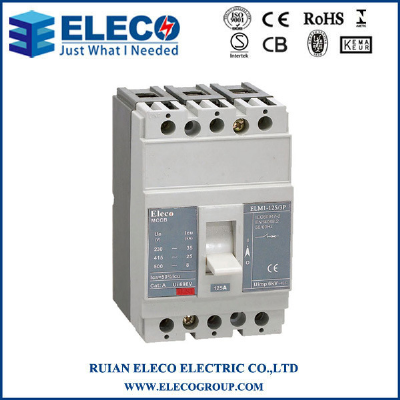

Hot Sale Moulded Case Circuit Breaker with CE Elm1 Series

ApplicationELM1 series moulded case circuit breaker is one of products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 690V and used for circuit of A. C. 50/60Hz, rated operating voltage AC 400V(or below), rated operating current up to 1250A for infrequent changing over and starting of the motors. The products conforms to IEC60947-2 standard. ModelELM1-160ELM1-200ELM1-63Number of poles12L=23/4L=4Breaking capacityBNBNBNBNSRated current of frame size Inm160(200)200 200L63 63 lRated current In12.5, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160(200)12.5, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160(200)10, 12.5, 16, 20, 25, 32, 40, 50, 63Rated insulation voltage Ui500V500V400VRated operating voltage Ue230V400V 230V400VRated current of the N pole=In=In=InICU AC 400V/50Hz o-co (ka)Rated ultimate short-circuit breaking capacity25 3625 36 25 3620 30 50ICU AC 400V/50Hz o-co (ka)Rated ultimate short-circuit breaking capacity18.75 2718.75 27 18.75 2710 15 37.5Rated current of remnant motion In (mA)-30 50 100 30030 100 300Rated current of remnant no-motion Ino (mA)-15 25 50 15015 50 150Icm(peat) ICU AC400V/50Hz IsRated short-time withstand current (ka)---UimpRated impulse withstand voltage (V)100010001000Dielectric property (V)250025002500EnduranceTotal cycles200001500010000Electrical endurance300025001500Mechanical endurance17000125008500Lonization distance (mm)≤30/0≤30/0≤30/0Over current trip unitThermal magnetic release---Intelligent trip unitUtilization categoryMain circuitA/OA/OA/OAuxilliary circuitAC-15AC-15AC-15Outine dimensionsW(mm)3P30(1p)60(2P)764P-- 60(2P)101 101L(mm)3P1201201204P-- 155120 155H(mm)3P7070704P-- 7070 70WeightFixed version 3p/4p0.92/1.30.92/1.3 -0.92/1.3 -Plug-in version 3p/4p-- -1.2/1.5 -Draw-out version 3p/4p-- -- -About UsEleco Electric is on of the most specialized manufacturers and exporters for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Circuit Breaker (MCB), Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers With Overcurrent Protection(RCBO), Switch-disconnector, Distribution Box, MouldedCase Circuit Breaker(MCCB), Air Circuit Breaker(ACB), AC Contactor, Magnetic Starter, Motor Protection Circuit Breaker, Thermal Relay and K.W.H meter etc.The company takes the reputation as one of the largest manufacturers of electro-magnetic type RCCB and RCBO, OEM orODM projects are fully accepted, currently the company is co-operating with a number of renowend international corporations for such projects./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
