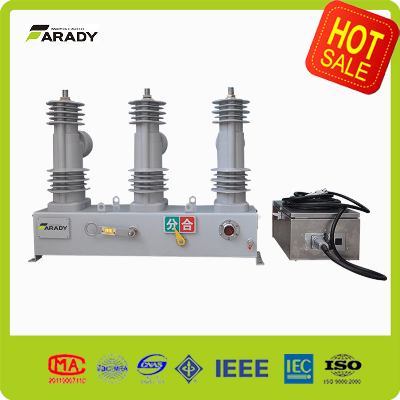

Far-11kv Outdoor Auto Circuit Recloser with IEC60850 Controller

++++GeneralFarady Powertech strives to bring our customers the latest technology and competitive pricing and best service for pole mounted Auto circuit recloserThe FAR series Auto circuit recloser can use on overhead distribution lines as well as distribution substation applications for all voltage classes 11kV up to 38kV at 50/60HZ power system. And its rated current can reach 1600A.The FAR series Auto circuit recloser integrates the functions of control, protection, measurement,communication,fault detection,on-line monitoring of closing or opening.comply to  IEC62271 and ANSI/IEEE C37.60 standard++++Service environmenta) Air temperature: Maximum temperature: +85ºC; Minimum temperature:-45ºCb) Humidity: Monthly average humidity 95%; Daily average humidity 90% .c) Altitude above sea level: Maximum installation altitude: 2500m or more higher.d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.e) No frequent violent shake++++Technical data No. Item Unit data1Rated voltage kV1527382Rated current A630125016003Rated frequency HZ50/604Power frequency 1minDry kV506585Wet 4555755Lightning impulse withstand voltage(peak value)alternate, opposite/fracture kV1101501706Rated short circuit breaking current kA2016/2512.57Rated short current switching current(peak value)kA5040/6331.58Rated peak value withstand current kA5040/6331.594S short time withstand current kA2016/2512.510Rated operating circulate  O-T1-CO-T2-CO-T3-CO-T4-CO11Breaking current frequency under rated short circuittimes3012Mechanism life times1000013Secondary loop 1 min power frequency withstand voltage kV2++++Outline & Sizes for FAR/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
