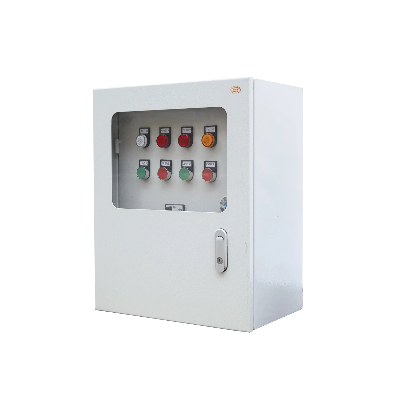

Kaiyuan Kyk Fire Fighting Pump Control Panel

>>> Product OverviewKYK-X fire pump control panel is designed and produced by Shanghai Kaiyuan Pump Industrial Co., Ltd. according to national fire fighting standard architectural design fire prevention code and high civil building design fire prevention code. It has signal interfaces such as on-off control by fire hydrant button, remote control, fire fighting centre control, fire pump operation and fault. It is dedicated to water pump control equipments such as high-low building industry, civil building fire fighting, sprinkle, water curtain, rain shower, fire fighting network voltage stabilization and pressurizing, etc. It can also meet users' different control requirements of fire water pumps. >>> FUNCTION DESCRIPTIONWater Pump Working Mode1. One main and one standby:When controlling 1 and 2 pumps, it can work in two states '1 main and 2 standby' or '2 main and 1 standby'. When the main pump breaks down, the standby pump will start to work automatically. Start manually by panel operation button. If the user requires to use both pumps, it is not necessarily to equip the standby pump.2. Two mains and one standby:When controlling 1, 2 and 3 pumps, it can work in three states '1, 2 main and 3 standby' or '2, 3 main and 1 standby' or '1, 3 main and 2 standby'. When the main pump breaks down, the standby pump will start to work automatically. Start manually by panel operation button. If the user requires to use all pumps, it is not necessarily to equip the standby pumps.3. Three mains and one standby:When controlling 1, 2, 3 and 4 pumps, it can work in four states '1, 2, 3 main and 4 standby' or '2, 3, 4 main and 1 standby' or '1, 3, 4 main and 2 standby' or '1, 2, 4 main and 3 standby'. When the main pump breaks down, the standby pump will start to work automatically. Start manually by panel operation button. If the user requires to use all pumps, it is not necessarily to equip the standby pumps.Main Pump And Standby Pump Switch Mode1. Manual switch:Main pump and standby pump are switched manually. When the main pump has faults, the standby pump will start to work automatically.2. Ac automatic alternative switch:It is proper for the occasion where main pump and standby pump need to work alternatively. Once started, the main pump and standby pump will alternate one time. This type also has a function that the standby pump switches automatically if there is a fault.3. As timing switch:It is proper for the occasion where the pumps work frequently, which makes each pump's working time more average and prevents one pump's long time using and huge losses. It is switched at an interval time.Start-up Mode1. Direct start:Full-voltage starting, full-voltage operation, large starting current.2. Autotransformer start:Voltage and current will be reduced by autotransformer when starting, and will be restored to rated voltage when operating.3. Soft start:Pumps are started by electric soft starter, there is no contact diverter during the start process, and voltage and current will rise smoothly, which will not make huge impact on power grid and pipe networks.Additional Function1. Timing start-stop:Pumps can starts and stops at a predetermined time according to the time which is set by clock operated switches in the control panel.2. Remote interface:Electric control panel is equipped with remote monitoring terminals and can convey pumps' working condition to duty room in remote distance in order to be monitored.3. BA interface:Electric control panel is equipped with building automatic remote monitoring terminals, showing equipments' working condition and enabling start-stop controls.4. Dual power:Electric control panel is connected with dual power supply, which be switched automatically and manually.WORKING ENVIRONMENT1. mains voltage fluctuation:≤±10%;2. surrounding environment temperature:-10-±40ºC(non-frozen);3. air relative humidity:20%-60%(without condensation);4. place without explosive danger;5. place without conductive dust and gas which can corrode mental and destruct insulation;6. vibration: >> PERFORMANCE CHARACTERISTICS1. Simple circuit design and reasonable structure, which is convenient for faults analysis.2. There are manual, automatic and remote control function, which can ensure the equipments' safe and continuous operation.3. Excellent performance, flexible control methods, strong resistance to interference, steady and safe working condition.4. Protection function: motor overload, short circuit, phase losses, pump casing leakage, motor stator overheat, safe usage, simple maintenance.5. Programmed control, several control modes according to users' requirements such as several pumps' automatic alternative operation and timing start & stop.6. High-power pumps can be started smoothly by frequency converter or smart soft starter.>>> APPLICATION SPECIFICATIONFire pump control panel is control equipment, which is dedicated to fire pump control equipments such as fire hydrant, sprinkle, water curtain and rain shower
