AC SPD 40ka Power Surge Protector

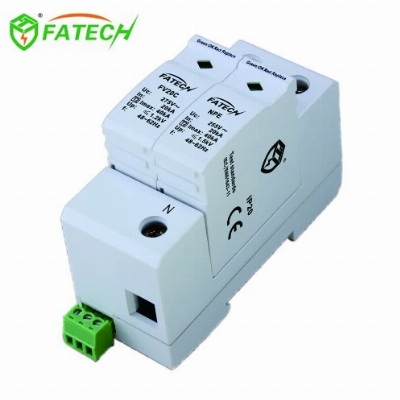

SPD FV20C/1+NPE-320(S) is for low-voltage power supply 385V, Imax 40kA, 2poles. 1. Surge protection device for low-voltage power system Characteristic FV20C/1+NPE-320(S)-Class II / Type 2 1 phase 1P+N surge protection devices. -Consisting of a base part and 1 MOV + 1GDT plug-in protection modules.-For using in the lightning protection zones concept at boundary 1-2.-The core parts are metal oxide vristor components with high discharge capacity.-Low residual voltage and quick response-Reliable control thanks to Thermo Dynamic Control disconnector.-With remote signaling contact for control device.-Fault indication via red mark in the inspection window.-Protection mode: L-N, N-PE.2. FV20C/1+NPE-385(S)surge protection device are suitable for lightning and surge protection in AC 50/60Hz, 220/380V.Model. No.FV20C/1+NPE-320SSPD protection conforms to IEC 61643-11 / EN 61643-11Type 2SPD installation type conforms to IEC 61643-11 / EN 61643-11Class IIProtection level conforms to DIN VDE0675-6CType of NetworkTTProtection modeL-N , N-PENominal Voltage   UN 220/380 Vac/50(60)HzMaximum continuous operating voltage    UC320 Vac/50(60)HzContinuous operating current   IC1000 MΩResponse time   tAL-N≤25 nsN-PE≤1000 nsRemote control contactYESDisconnection indicatorMechanical indicator(Green: OK, Red: Replace)I/O ConnectionsBy screw terminal:10-35mm2By connection busInstallation locationInsideMounting typeSymmetrical rail (EN50022/DIN46277-3)ColorGrayDegree of protectionIP20Housing materialUL94V-0Ambient temperature-40°C ~+80°CAltitude≤2000 m (amsl (above mean sea level))Permissible humidity30%~90%3. APPLICATION of surge protection device FV20C/1+NPE-385(S):AC power line of house, bank, telecom tower and so on. 4. Dimension and circuit of surge protective device  FV20C/1+NPE-385(S):Company Information      FATECH ELECTRONIC CO., LTD., is located in Guangdong Provincial New Light Production Base, CHINA, which is a professional manufacturer on R&D and producing on lightning and surge protection devices. Our company gathered all kinds of high-skillled personnels, including authority technical experts and professionals, and excellent technicians with more than 10 years experience. Wide range of lighting & surge protection products assured you a one stop shopping location for all your need and professional technical support,warmly welcome your visit and audit our factory.Workshop      Fatech has gathered authority technical experts and professionals as technical advisers and 50% production workers have more than 5 years working experience of surge protection products. Also we established an advanced independent test center with variety of testing equipmet, including reliability testing laboratory, environmental aging testing laboratory, release testing laboratory.Exhibition            FATECH have strong sales team, our surge protection device are sold to many countries around the world. mainly in Europe, Asia, Latin-America, and Middle East. We would like to cooperate with global customers and help you success in your market.Certifications        FATECH Electronic (FOSHAN) CO., LTD. supplies five-years warranty on surge protective devices, and supply maintenance services in lifetime.Products are certified with TUV, CE; UL pending, 90% material are UL approved.  FAQ: 1. Q: Could l know which advantages do you have please? A: Independent test center, TUV, Patent certifications; 15 years export experience in the overseas market; good technical service and support. 2. Q: Are you a lightning surge protectors factory or trading company?A:  We area manufacturer which is ISO 9001-2008 quality system on R&D, production and sales of surge arrester. 3. Q: Warranty and return? A:  We supply five-years warranty on surge protective devices and own the best after-sale service team, if anyproblem happens, our team will do our best to solve it for you. 4. Q: What's the delievery time? A:  It is usually about 15 days after receiving the payment and confirmed the order, but specific time shouldbe based on the order quantity.    Why choose usFATECH ELECTRONIC CO., LTD., is located in Guangdong Provincial New Light Production Base, CHINA, which is a professional manufacturer on R&D and producing on surge protection products. Our company gathered all kinds of high-skillled personnels, including authority technical experts and professionals, and excellent technicians with more than 10 years experience. In-house testing lab. guarantee out-going products quality. Products are certified with TUV, CE; UL pending, 90% material are UL approved.  Our in-house test lab.:We established an independent testing laboratory, including reliability testing laboratory, environmental aging testing laboratory, release testing laboratory, which can be performed tests below:Impulse current generator (8/20 μS/160kA and 10/350μS/20kA)Thermal stability testerSalt Spray ChamberMulti-function Varistor TesterOn-line Aging TesterDielectric Voltage Withstand Tester1.2/50 Voltage Im
