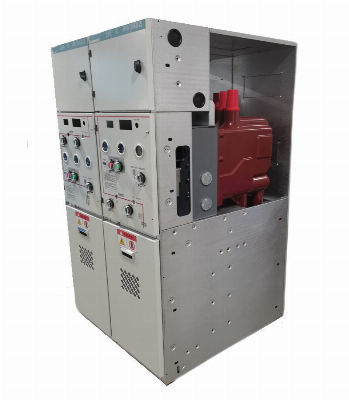

Circuit Breaker Diecasted Solid Insulation Panel 11kv Sis

  ProductMedium voltage metal clad air insulated switchgearRated voltage36KVRated currentup to 2000APanel sizewidth 1200/1400mmProtection degreeIP4X  Product DescriptionKYN28, KYN61 series armored type movable AC metal-enclosed switchgear is used for three-phase AC 50Hz and 12/24/40.5kV single busbar and single busbar sectional system. It is mainly used for control, protection and monitoring in different fields, such as for power transmission and distribution in power plants, electric power substations, industrial and mining enterprises and high buildings. It meets the requirements specified in standards IEC60298, GB3906 and DL404. It has complete "five-prevention" function.Features1)Heat-shrinkable insulation or epoxy coat is used as insulation to optimize shape of the electrode.2)The switchgear uses imported hot-dip Al-Zn plates processed and formed by CNC machining tool, connected together by high strength bolt nut and rivet nuts.3)It can be equipped with home-made or imported vacuum circuit breakers meeting needs of different users;4)All functional cubicles are separated by metal plates fitted with independent pressure release channel.5)Roll ball lead screw propulsion mechanism is used to make easy movement of the truck.6)Switchgear structure has strong adaptability.7)Mechanical interlocking mechanism for avoidance of misoperation8)Easy operation and maintenance.Product Parameters Detailed Photos  CertificationsCompany ProfilePackaging & Shipping   Our Advantages1. R&D AbilityWe are specialized in the field for more than 10 years, and has a well experienced R&D team taking the design and development work for each project based on customer's special demands.   2. QC TeamWe have extremely strict QC procedure from components to finished products.   3. Production CapacitySteady production period within 15 days.   4. High Quality ProductWe have full set of test reports for products and are supplying for the world's largest utility - State Grid Corporation of China(SGCC) and China Railway Construction Group.  FAQQ1: Are you factory or trading company? A: Factory, we can guarantee our price is reasonable and competitive.   Q2: When can I have the price? A: Usually we quote within 24 hours after receiving your inquiry.   Q3: How could I get a sample? A: If you can not buy our product in your local area, we will ship a sample to you. You will be charged of sample price plus all related shipping costs. Q4: Can we print our logo and company name on products? A: Yes, of course, we accept OEM.   Q5: What is the lead time? A: The lead time depends on the quantities ordered, normally within 7-20 days after receiving the payment.   Q6: How's your quality control process? A: All products will be inspected starting from accessories, and will be carried out with routine tests before leavingour factory.   Q7: How to solve the quality problems after sales? A: Take photos or video of the quality problems and send to us for our checking and confirming, and we will make a satisfied solution for you within 1-3 days.   Q8: What's the warranty time? A: 12 months from shipping date.Q9: Why choose us?A:1.We are specialized in the field for more than 10 years, and has a well experienced R&D team taking the design and development work for each project based on customer's special demands.2.We have extremely strict QC procedure from components to finished products. 3.Steady production period within 15 days. 4.We have full set of test reports for products and are supplying for the world's largest utility - State Grid Corporation ofChina(SGCC) and China Railway Construction Group./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
