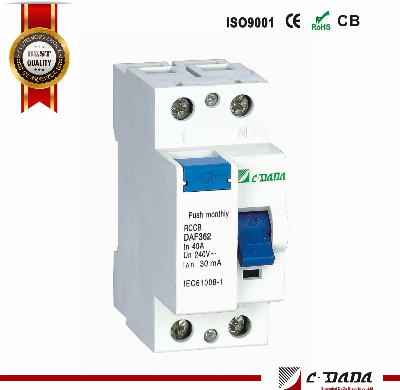

Daf360 Series RCCB Residual Current Circuit Breakers

Introduction   The DAF360 electronic residual current circuit breaker has been designed and manufactured in accordance with the latest IEC61008-1 standards and complies with the EN50022 standards for modular switches. They can be used to load standard guide rails with "hat shape" symmetrical structures.If a ground fault current is detected by the DAF360 residual current circuit breaker, it will compare it to the ground leakage release current value and the circuit breaker will immediately break the circuit if the former is greater than the latter.Circuit breakers can connect ground systems in order to protect the charged body from indirect contact. It also functions to direct contact charged body additional protection if the rated residual current value is greater than or equal to 30mA. Besides the protection of the direct or indirect contact charged body, the circuit breaker also protects against potential fire hazards in case the wiring insulation is damaged. ApplicationThe DAF360 residual current circuit breaker is designed to meet GB16916.1, IEC61008 and BS4293 standards. It is used in situations requiring alternating current 50-60Hz, single-phase 240V (220V), three-phase 415V (380V) such as industrial and mining operations, commerce and household. It can be used for infrequent conversion of lines under normal circumstances when functions as a personal electric shock and equipment leakage protection device.Tripping sensitivity10mA-precision instrument leakage protection and bathroom use30mA-additional protection against direct contact.100mA-co-ordinated with the earth system according to the formula I△n
