Lightning Protector SPD Electrical Surge Protector Power Lightning Surge Arrester

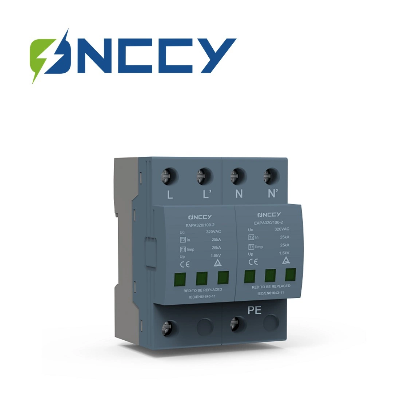

A leading provider of AC Surge Protection DeviceAn AC Surge Protection Device (SPD) is a vital component used in electrical systems to safeguard sensitive equipment and appliances from voltage surges, also known as transient overvoltages. Voltage surges are sudden increases in voltage that can occur due to various reasons, such as lightning strikes, switching of large electrical loads, or power grid disturbances. These surges can damage or degrade electronic devices, causing malfunctions, reduced lifespan, or complete failure.AC Surge Protection Device(AC SPD)320V T1+T2 Imax:100KA 2PProduct Benefits2PoleAC Surge Protective Device T1+T2Discharge currents Imax 100AFeatures (plug-in, remote signaling, compact, narrow design for little space)Remote signal with RC OptionalMaximum Continuous Operating Voltage 320V  Technical DataIEC Electrical Nominal AC Voltage (50/60Hz)Uo /Un230V                  230V                  230V                   400VMaximum Continuous Operating Voltage (AC)Uc275V                  320V                  385V                   440VNominal Discharge Current (8/20 μs)In20kA                   20kA                   20kA                   20kAMaximum Discharge Current (8/20 μs)Imax50kA                   50kA                   50kA                   50kAImpulse Discharge Current (10/350 μs)I Imp12.5kA                12.5kA                10kA                   10kASpecific EnergyW/R39kJ/Ω       39kJ/Ω       25kJ/Ω       25kJ/ΩChargeQ6.25As                6.25As                5As                     5AsVoltage Protection LevelUp1500V                1500V                 1800V                 2000VResponse TimetA
