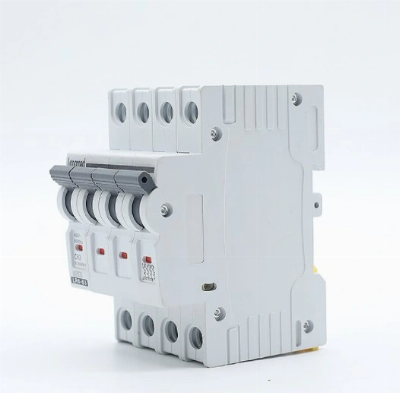

Lr6-63, Long Road/OEM, 230/400 VAC Electromagnetic RCCB SAA Approved

1. MCB Description:• High breaking capacity and current limiting characteristics;• Can be installed on standard busbars;• Dual-function terminals on the upper and lower sides (lift type/open type);• It can be fixed to the busbar on the upper or lower side;• With isolation function, it can be used as a main switch;• Red-green color contact status indicator;• Wiring terminal guide to prevent wrong wiring;• 3-position guide rail clip for easy removal from the busbar;• Complete product specifications;• Applicable up to 48 V DC• Rated breaking capacity 6kA in accordance with IEC/EN 60898-12. Electrical technical data:Design according toIEC/EN 60898-1CharacteristicB, C, DRated voltageAC 230 / 400V DC 48V Single-pole, 2 pole in series: 96VDCRated frequency50/60HzRated current6,10,16,20,25,32,40,50,63ARated current interrupting ratingB,C,D curve----6000ANumber of poles1,1P+N, 2, 3, 3P+N, 4Endurance≥ 20,000 operationsPower inlet modeUpcomingAllowable ambient temperature range-40ºC~75ºC3.Mechanical technical data:Per pole width dimension13mmInstallation methodIEC standard rail 35mmEnclosure protection gradeIP20Dual function terminals on both sidesOpen type / lift typeTerminal protectionFinger and hand safeTerminal wiring capacity1-25 mm²Terminal screw tightening torque2-2.5 NmBusbar thickness0.8-2 mmInstallation anglefunction is independent of position/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
