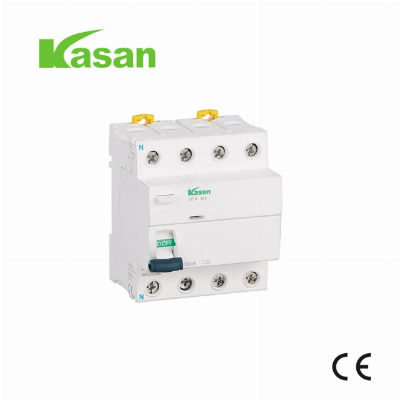

Iidk 10ka 2 Pole 4 Pole Circuit Breaker 10mA RCCB

new type iIDK rcd 30ma 100ma 300ma rccb circuit breaker   1.Product Applicaion: 1)ID Residual Current Circuit Breaker 2)functions of isolation, switching and earth leakage protection 3)CE, ISO9001 4)OEM  New type iIDK rccb For protection against risk of fire due to live to earth fault where fault current is insufficient to cause over-current protection device to operate.For protection against riskof shock from indirect contact with equipment suffering a live to earth fault.For protection against shock in potentially hazardous environment.As supplemntary protection against shock from directly touching live parts.Note:an RCCB must not be used as the sole means of protection against touching live parts. 2.Specifications:  PARAMETERRATINGTypeElectro-magneticNumber of poles2P4PRated making and breaking capacity630ARated Current(In)25, 40, 63, 80, 100ARated Voltage(Un)AC 2P: 230/240V 4P: 400/415VRated residual operating current( In)30100300500mARated residual non-operation Current( Ino)0.5InResidual operating current scope0.5In~InResidual current breaking time≤ 0.3sResidual current trip characteristicsA, ACUltimate short-circuit breaking capacity (Inc)6000AEndurance≥ 4000Connection Capacity≤ 25mm 2Connection terminal torque (Max. )2.0NmDegree of protectionIP20StandardIEC/EN61008  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
