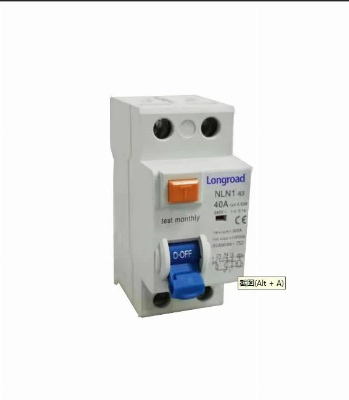

1. General 1.1 Function Control electric circuits. Protect people against indirect contacts and additional protection against direct contacts. Protect installations against fire hazard due to insulation faults. Residual current circuit breakers are used in housing, tertiary sector and industry. 1.2 Selection Detectable wave form AC class Tripping is ensured for slowly increasing sinusoidal AC residual currents. A class Tripping is ensured for sinusoidal AC residual currents and for pulsed DC residual currents, whether applied suddenly or increasing slowly. Tripping sensitivity 10mA - precision instrument leakage protection and bathroom use. 30mA - additional protection against direct contact. 300mA - protection against indirect contacts, as well as fire hazard. Tripping time Instantaneous It ensures instantaneous tripping (without time-delay).2.Technical data Standard IEC/EN 61008-1Electrical featuresType (wave form of the earth leakage sensed) AC, ARated current InA16, 25, 32, 40, 63,100APoles 1P+N, 3P+NRated voltage UeV230/400~240/415,110/200~127/220Rated sensitivity I△nA0.01 (Only for 1P+N 16A, 25A),0.03,0.3Insulation voltage UiV500Rated residual making and breaking capacity I△mA500 (In=16A/25A/32A/40A)630 (In=63A)Short-circuit current Inc=I△cA6000/10000SCPD fuseA10000break time under I△ns≤0.1Rated frequencyHz50/60Rated impulse withstand voltage(1.2/50) UimpV6000Dielectric test voltage at ind. Freq. for 1 minkV2Pollution degree 2Mechanical featuresElectrical life 2, 000Mechanical life 2, 000Fault current indicator YesProtection degree IP20Ambient temperature (with daily average≤35ºC)ºC-5...+40Storage temperationºC-25...+70InstallationTerminal connection typeTerminal size top/bottom for cableTerminal size top/bottom for busbarmm2Cable/U-type busbar/Pin-type busbar25AWGmm218-310AWG18-8Tightening torqueN·m2.5In-Ibs.22Mounting On DIN rail EN 60715 (35mm) by means of fast clip deviceConnection From top and bottom /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
