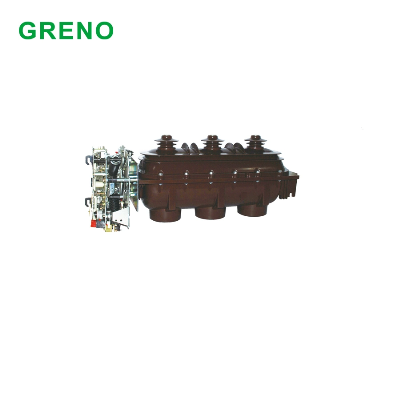

Indoor Load Break Switch Sf6

1.Application: It adopts SF6 gas as an arc extinguishing and Insulation medium. It includes three contactors for switching on    and switching off. It is also for the control and protection of substation and equipments; making and breaking short-circuit     current under various operating status of electric network .2.Standards: IEC 62271-1053.Parameters:    Rated voltage: 12kV.                                 Rated current:  630A.                               Rated frequence:AC50HZ.  1.Easy operation and installation 2.Connection combination is simple and convenient 3.Insulation and sealed structure,  4.Reliable interlock, compact design SF6 Gas Circuit Breaker1 Ambient air temperature: -25°C~ +40°C2 Altitude: ≤1000m3 No operation in such places as subject to dust, smog, corrosive/flammable gas, vapor and salt pollution.4 Relative humidity: Daily average ≤ 95%                              Monthly average ≤ 90%5 Water vapor pressure: Daily average ≤2.2kPa                                     Monthly average ≤1.8kPa6 The external shocking and earthquake from the switchgear and control equipment could be neglected.7 The amplitude of electromagnetic interference in the second system ≤1.6kVNote: Customized products for other special working conditions are available on your requirements.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
