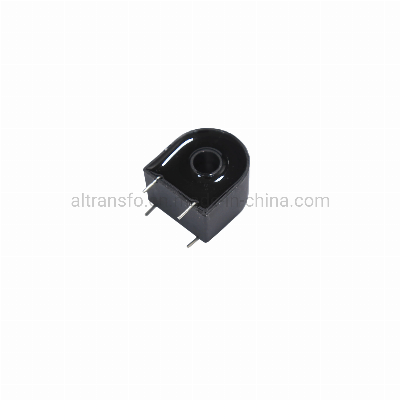

30A 3000: 1 Small PCB Mount Current Transformer

Product Description    Solid Core Current Transformer design for better accuracy for 0.333V output .5 standard models for your choice.Solid core CTs are more accurately , small in size, and very cheap .If mA sendary output ,accuracy can be 0.1%The main technical parameters:ModelAL-CTRated input current0-30A(100Ω)turns ratio3000:1phase angle error≤20'(input 1A,sampling resistor 100Ω)linear range0~30A(sampling resistor 100Ω)linearity0.2%(5%dot~120%dot)Permissible error-0.2%≤f≤+0.2%(input 1A,sampling resistor 100Ω)applicationcurrent and power measurementisolation voltage4500VEncapsulationEpoxyinstallationPCB mounting(Pin length>3mm)operating temperature-40ºC~+85ºC  APPLICATIONS-Residual current circuit breaker-Earth Leakage protection switch-Leakage circuit protection Breaker-Leakage circuit protection plug (Appliance Leakage Circuit Interrupter -ALCI) Features:Epoxy encapsulated and has a polypropylene resin caseRoHs compliant-High sensitivity-Close to zero load shift and zero phase shift-Excellent in balance-Perfect in temperature stability-Small change in output voltage  Application      Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.Packaging & ShippingFAQ1.Q: Are you trading company or manufacturer?A:we are manufacturer. 2. Q: Can I have a sample order?A: Yes, we welcome sample order to test and check quality,and you need to pay the sample fee and freight. 3. Q: Does your factory have the design and development capabilities, can you factory accept customized products?A: The staffs in our R&D department are well experienced in the Electric industry, with more than 27 years' experience.AL also offer customers personal services contains OEM, ODM and OPM. 4. Q: How long could I get my order?A: Customized products: usually 10-15 days. It depends on your design and quantity. 5. Q: How is your production management and quality control system?A: All our product process follows up ISO9001. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed Other products  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
