Top Quality Electrical Insulating Varnish Price Cheap Insulation Varnish

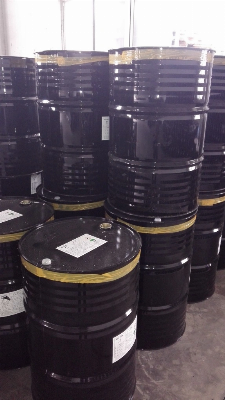

SW-BEI 3200 polyesterimide insulating enamel varnishProduct DescriptionThe products are THEIC modified polyesterimide enamels, which have good enameling performance, high flexibility, together with wonderful heat resistance, mechanical properties and chemical resistance. They are applicable for the horizontal and vertical coating machines. The resins could be used alone or coated with polyamideimide enamels. The products have been UL listed.Product ParametersProducts typeSolid contentViscosityRecomd wire sizeRecomd coating method1g/1h/180ºCD4 cup, 25ºC/sCone plate, 25ºC/(mPa.s))BEI 3200/2828±1%22-26--0.10-0.30Via feltBEI 3200/3333±1%30-40--0.15-0.50Via feltBEI 3200/3636±1%50-80350-6000.30-1.50Via dieBEI 3200/4040±1.5%--600-13000.50-2.00Via dieBEI 3200/40 TH40±1.5%--600-13000.50-2.00Via dieBEI 3200/4444±1.5%--1500-30001.00-3.50Via dieEnameled wire's performance Film thickness0.015mm0.060mmFlexibility, AdhesionJerk test, no bare15% winding tension, 1DHeat shock220ºC,0.15mm220ºC, 2DCut through temp.360ºC360ºCBreakdown voltage2000V9000VTgD185ºC190ºCOther photos   Packaging & ShippingThe products with 200L iron drums or 1000L plastic IBC packages are available.   WorkshopCompany Profile SWAN INT'L , based in Shanghai , is the manufacturer and exporter of wire , cable and its manufacturing equipments ; the company also provides the consulting service for international bidding projects, Chinese supplier sourcing service for the industrial products supply chain development .    The company has developed its business with more than 100 overseas clients in more than 20 countries and regions such as Germany,Italy, Brazil, Southeast Asia, Russia, Turkey, the Middle East Region , Africa, etc.For wire and cable industry , the company provide the overall whole factory technology solutions for wire and cable companies , including the whole factory tailor made technical design , manufacturing equipment technology consulting service , equipments selection and innovation. We supply wire and cable products and OEM service .Our equipments includes :full line for copper rod up-casting manufacturing,Tandem line for CAT5/6/7 series and coaxial cable manufacturing,Equipment units for Drawing/Stranding/Bunching /Extrusion .Our wire and cable products includes : Power cable,telecommunication cable , Enameled copper ( aluminum ) wire ,etc .    China government's new " Road and Belt " policy , provide one brand new chance for industry manufacturing capacity cooperation with overseas country and regions .By this new policy ,Shanghai SWAN INT'L sincerely hope to establish and develop long-term , mutual benefit relationship with you in the future     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
