Water-Based Epoxy Insulation Varnish

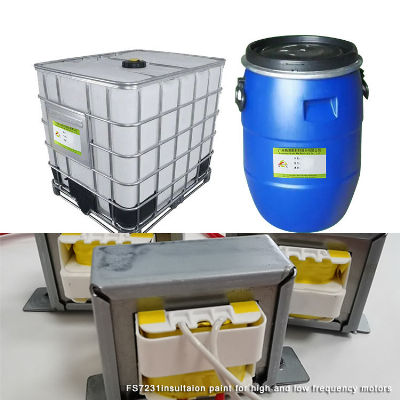

Water-based Epoxy Insulation Varnish Product Description Water-based insulation varnish FS7231 is composed of epoxy resin, specialty curing agent, water, etc. It is a one-component waterborne epoxy insulation system that has exceptional characteristics of low odor, long shelf life, strong paint film adhesion, high adhesive strength, and no paint slag. With recommend heating temperature of 110ºC~130ºC, FS7231 can be quickly cured after 120-180mins oven time. ApplicationsThis water-based epoxy insulation varnish is suitable for dipping and insulation treatment of coils of high-frequency transformers, fan motors and other electrical appliances. Typical PropertiesItemTest ConditionUnitValueReferenceAppearance---white lotionGB/T 1981.2-2009ViscosityPaint #4 cups 23±2ºCS13±3Thick layer curing125ºC±2ºC×180min-S1U1I3Volume resistivityNormal(23ºC±2ºC)Ω·m≥1.0×1011GB/T 1981.2-2009Soaking(23ºC±2ºC,24h)≥1.0×108Electric strengthNormal(23ºC±2ºC)MV/m≥70Bond strengthN (Helical Coil Method)N≥50GB/T 11028-1999 Processing  Workpiece requirements: dry, clean, and pollution-free Impregnation process: vacuum dipping paint for 3-5 minutes, no need for the second vacuum negative pressure Drip paint: drip paint for 10-15 minutes or until the workpiece has no paint beads Baking conditions: 110~120ºCfor 2~3 hours (according to the thickness of the transformer stack, the baking time can be extended accordingly) Precautions  The amount of paint in the paint storage tank is matched according to the use plan. And a certain amount of new paint can be added every day to ensure the stability of the system. Use stainless steel paint storage tanks, paint dipping tanks, and pipes to avoid water stains and rust. When dipping paint, the workpiece should not enter the dipping tank at high temperature, the internal temperature of the workpiece should be cooled to room temperature. And the temperature of the paint in the dipping tank should not exceed 30ºC, if the temperature is too high, which may easily cause emulsion skinning. It is necessary to avoid mixing oily, acid-base and other substances, which will affect the stability of water-based paint, and even cause demulsification to be scrapped. During the curing process, pay attention to the control of the baking temperature and holding time. If the recommended baking temperature and time cannot meet the dryness requirements, it can be solved by increasing the baking temperature or prolonging the baking time. The air outlet of the oven should be unobstructed to facilitate the volatilization and discharge of water vapor, so as not to affect the curing speed of the insulating paint. Package 1000kg/IBC tank,20kg/drum  Hot Tags: Water-based Epoxy Insulation Varnish, Manufacturers, Suppliers, Wholesale, Buy, In Stock, Customized, Bulk, Free Sample, China, Cheap, Discount, Low Price, Price, Price List, Quotation, Quality, Advanced, Factory /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
