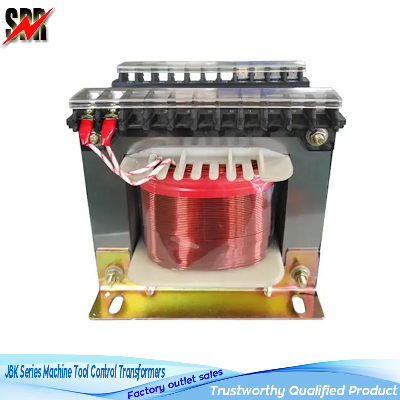

Jbk Series Machine Tool Control Transformers

JBK3 series machine tool control transformer is a new series designed and manufactured according to the advanced technology of SIEMENSin the 1980s. It conforms to relevant standards such as VDEO551, IEC204-1, IEC439, GB/T5226.1-2002, and can be similar to foreign countries.Product interchangeable use. The wiring method can be crimped or borrowed, and has the terminal block that meets the requirements of textileaccidental protection. The product cost advantage is obvious. The product is suitable for AC 50/60Hz and input voltage not exceeding 1000V.It can be widely used in the control power supply of general electrical appliances such as machine tools, numerical control equipment, mechanicalequipment, etc., and the power supply for working lighting and signal lamps.Parameter tablePART NO.CAP(VA)Input(V) Output(V)/(A) Dimensions(L×W×H) Installation  (l×w) Installation  (Φ)  JBK3-110-09  110VA  380V-400V-415-440V-460V  220V/90VA,15V-20V-24V/20VA 92X96X95 80X65       5X9 JBK3-110-10 110VA 200V-220V 230V-380V 220V/90VA,15V-20V- 24V/20VA 92X96X95 80X65       5X9 JBK3-160-06 160VA 380V-400-415V-440V-460V 220V/140VA,150V-20V-24V/20VA 100X95X105 84x72       6X9 JBKG-160-07 160VA   200V-220V-230V-380V-400V-440V-460V 220V140VA, 150V-20V-24V/20VA 100X95X105 84x72       6X9 JBK3-250-14 250VA 380V- 400V-415V-440V-460V 220V/230VA, 15V-20V-24V/20VA 100X98X108 84x76       6X9 JBK3-350-02 350VA 380V-400V-415V-440V-460V 220V/330VA, 15V-20V-24V/20VA 100X108X108 84X86        6X9  JBK3-450-03  450VA   380V-400V-415V-440V-460V 220V/430VA, 15V-20V-24V/20VA 122x107x125 90X85       6X9 JBK3-630-03 630VA  380V-400V-415V-440V-460V 220V/610VA, 15V-20V-24V/20VA 152x 108X145 135X85       7X12 JBK3-110-17 630VA 380V-400V-415V-440V-460V 220V/580VA, 15V-20V-24V/50VA 152X108x145 135X85       7X12JBK3 800-01800VA380V-400V-415V-440V-460V 220V/780VA 15V-20V 24V/20VA 152X123X145 135X96       7X12JB3-1000-011000VA380V-400V-415V-440V-460V 220V/950VA, 15V-20V-24/50VA 152x133x145 135X106       7X12JBK3 1200-011200VA380V-400V-415V-440V-460V 220V/180VA, 15V-20V-24V/20VA 152x133x145 135X106       7X12/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
