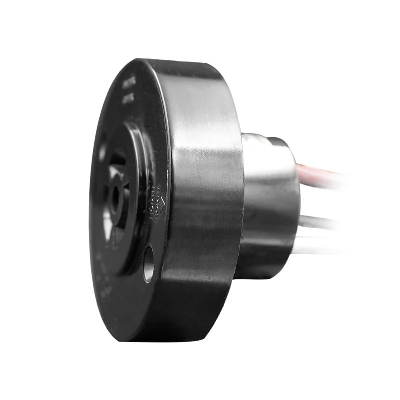

Model No.JL-200XJL-200ZPower Volt Range0~480VACRated Frequency50/60HzLoad Rating15 AAmbient Temperature-40°C ~ +70°CRelated Humidity96%AccessoryRear holder-YesZinc Alloy Lock Nut-YesMounting Bracket-YesLead Length6" minLeadAWG#12/14/16AWG#18(non-UL)AWG#12/14AWG#16/18(non-UL)Cable Line (IP65)-OptionalProduct SummaryAll the JL-200 series photocontrol receptacles were designed for the lanterns intended to accept a twist-lock photocontrol for power management.FEATURESBakelite body for long-life serviceSilicone gasket for better waterproofInstallationDisconnect power; wire the receptacle according to the diagram below. An arrow indicating NORTH on the top of the receptacle is used to assist correct direction.Adjust the receptacle position if possible. when the fixture is installed in field.Ordering InformationJL-200X 14 06 -N1 -RS -C -L2 1234567JL-200X1406N1RSCL21: model number: X=lantern assemble purpose, no rear cover Z=wall mount purpose, with rear cover and zinc nut2: Lead Rating 14=14 AWG, 105ºC rated 14G=14 AWG 150 ºC rated 12=12 AWG, 105ºC rated 12G=12 AWG 150 ºC rated 16=16 AWG, 105ºC rated 16G=16 AWG 150 ºC rated 18=18 AWG, 105ºC rated 18G=18 AWG 150 ºC rated3: Lead Length 06 = 6 inches (150 mm) Customizable4: N1=3 mm Silicone gasket (for JL-200X only) N12=12 mm Silicone gasket (for JL-200X only)5: R=Outlet cover with O-ring (option for JL-200X only) RS= Outlet cover with O-ring & Sealed with glue (option for JL-200X only)6: C=Outdoor wiring cable (option for JL-200X only) CWP= Outdoor wiring cable with waterproof nut (option for JL-200Z only) null=Appliance wiring wire with zinc nut and gasket7: L=aluminum bracket T=Steel bracket* Refer to bracket assembly drawings below for dimension detailsAssembliesFAQQ1: Are you a Factory?Yes. We are the manufacture factory, and our factory has specialized in industrial electronic products for nearly 25 years.Q2: Do you have stock products to sell?No, We produce these electronic products according to the customer's requirement, It also means material, density, shape, size, design, the quantity will depend on what you.Q3: Does the electronic product can be printed as a LOGO?Yes, we can print the logo as per your specific requests.Q4: What advantages do you have?We are the Factory, and we have the ability to carry out a production schedule for punctual delivery. More importantly, We can provide free samples for quality evaluation.Q5: If I want to get a Quotation, what information needs to be provided to you?In general, Type and Quantity./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
