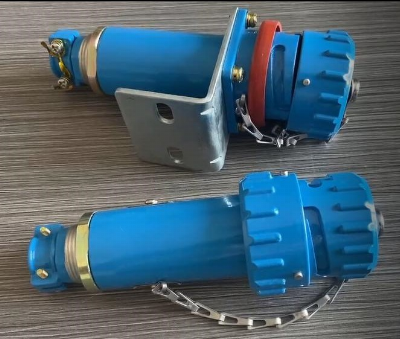

Drilling Rig Connector Gz/Yzxgz Explosion- Proof Plug and Socket

  Product Description15~300A Series explosion-proof plug/socket is suitable for petroleum exploration, electric control and other eletrical connection, which meet the standard EN 60079-7 and GB/T3836.3-2021"Explosive atmospheres parts 3: equipment protection by increased safety E".Atex certified- for zone 2IIC hazardous enviornments certificates number CNEX 19 atex 0018x.CQST certified Examined and tested for qualification by china national quality supervision and test  center for explosion protected eletric products and obtained the explosion-proof certificate, Ex mark: ex EC IIC T4 GCthree kinds of options are made avilable for socket, fixed socket, mobile socked,  tilt type socket.GZ,YZ, XGZ.BenefitsRugged: All components have aluminum housingsminimal heat build upengery savingslow maintenance costsperfect functions over 500 mating operationslonger product lifeEX MarkEx ec T4 IIC GcIntended usecan be use in Zone2Armbient temperature-55ºC≤Ta≤+60ºCWorking Voltage500V ACWorking Current15A/25A/60A/100A/150A/200A/300AWithstanding Voltage2800V AC 1 minProtection degreeIP55Connection typeCrimpContact number3-pins,4-pins,5-pinsLife durationLife durationBoth pin and jack could be inserted in plug or socket.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
