AC30 10 25 DIN Rail Outlet 16 AMP Socket Modular

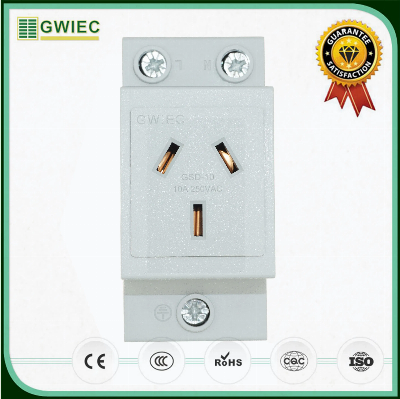

AC30 series Din rail modular socketModular sockets allow the connection of devices, tools or electrical and electronic non modular equipment in civil and industrial electrical switchboards.  Application                                                              (AC30 Moudular Socket)AC30 modular socket can be used together with our other modular products for connection of mobile devices,tools or electric and electronic non-modular equipments directly inside civil and industrial switchboards.Specification Type Rated current (A) Pole S Width(mm) rated voltage (V) Connection capacity AC30-10/2 10 2 18 230 ≤16mm 2 AC30-16/2 16 AC30-25/2 25 AC30-10/3 10 3 36 AC30-16/3 16 AC30-25/3 25 54 AC30-16/4 16 4 54 400 AC30-25/4 25 72 Technical DataFrequency:50 or 60Hz.Overvoltage category:3Rated insulation voltage Ui:500VPullution degree:2Rated impulse withstand voltageProtection class:IP20Uimp:5000VStandard mounting:35mm DIN railDielectric test voltage at ind.Freq.Ambient temperature:-5oC to +40oCfor 1min:2.8kVStorage temperature:-25oC to +70oCApplication                                                    (AU5 Modular Socket )ACF and ACG 20 modular socket can be used together with our other modular products for connection of mobile devices,tools or electric and electronic non-modular equipments directly inside civil industrial switchboards.Specification Type Rated current(A) Standard Width(mm) Connection capacity ACF 10,16,25 France 44.5 ≤6mm 2 AU5 10,16,25 Germany 44.5 ≤6mm 2Technical DataFrequency:50 or 60Hz.Electrical life: 5000timesMounting category:2,3Rated insulation voltage Ui:500VPullution degree:2Rated impulse withstand voltageProtection class:IP20Uimp:5000VStandard mounting:35mm DIN railDielectric test voltage at ind.Freq.Ambient temperature:-5oC to +40oCFor 1min.: 2.8kVStorage temperature:-25oC to +70oC /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
