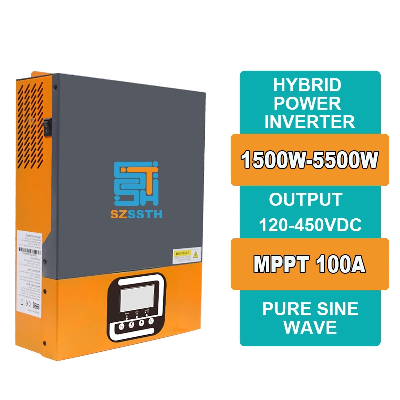

5.5kVA 48V off Grid AC DC Pure Sine Wave Solar Inverter

Technical SpecificationMODELST-VS II 3.5K-24ST-VS II 5.5K-48Rated Power3500VA/3500W5500VA/5500WINPUTVoltage230VACVoltage Range170-280 VAC (for PC) or 90-280 VAC (for Home Appliances)Frequency Range6050Hz(Auto sensing)OUTPUTAC Voltage Regulation (Batt. Mode)230Vac+-5%Surge Power6000VA10000VAEficiency(Peak)90%~93%Transfer Time10 ms (for Personal Computers); 20ms(for Home Appliances)WaveformPure sine waveBatteryBattery Voltage24VDC48 VDCFloating Charging Voltage27VDC54 VDCOvercharge Protection33 VDC63 VDCSolar Charger & AC ChargerSolar Charge TypeMPPTMax PV Array Open Circuit Voltage500 VDC500 VDCMax PV Array Open Circuit Power4000 W6000WMPPT Range@Operating voltage120-450VDC120-450 VDCMaximum Solar Charge Current100 A100 AMaximum AC charge Current100 A100AMaximum Charge Current100 A100 APHYSICALDimension(LxWxH) mm100x300x400Net weight(kgs)10 kg10.5kgCommunication InterfaceUSB/RS232ENVIRONMENTHumidity5-95% Relative Humidity (Non-condending)Operating Temperature-10°C to 50*CStorage Temperature-15*C to 60°CATTENTION: The correct adjustment of the system battery capacity depends on the specific use and scenario of the load and application.Otherwise, this can easily lead to insufficient battery capacity or excessive waste of electricity production If you are interested in how to calculate the required wattage or how to connect, you are welcome to consult customer service onlineThis is a multi-function hybrid inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size.Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.Product Features :1. Pure sine wave2. Configurable input voltage range for home appliance sand personal computer via LCD setting3. Configurable battery charging current based on appliances via LCD setting4. Configurable AC/Solar Charging priority via LCD setting5. Compatiable to mains voltage or generator power6. Auto restart while AC is recovering7. Overload /Over temperature /Short circuit protection8. Smart battery charger design for optimaized battery perfomance9. Cold start functionThis is the common application of inverters, it also includes the following equipment can constitute a complete operating system           •  Generator or Utility.   •   PV modules  Inverter can be applied to most home and office appliances, such as refrigerators, air conditioners, notebooks; Consult us for additional system architectures based on your requirementsMore than 30,000 customers are attracted by our company, because we strictly control the installation and inspection of electrical products before leaving the factory and the test before delivery, so that we can do the best we can, so that our customers can use our products at ease)We have passed Rohs certification, CE certification, BSCI, KC, FCC,Alibaba Vertified certification and design patent and other international certifications. Strictly control materials, processing, assembly, debugging, testing, packaging, transportation and other links to ensure the performance and quality of electrical products)········································································································································································· Q1: I would like to test the sample, but the shipping cost is too high, how to proceed to the next step?A1: This is just the sample order, we have already offered the best cost. It would be some kind of high on shipping, while it worth it -- checking the real quality of goods, and making sure it is the right one we need. For our bulk order, we can choose a better delivery method like sea delivery, unit shipping cost would be greatly lower. All we wish is long-time business,win-to-win. ········································································································································································· Q2: If our client wants to use a power inverter for the lithium battery, would it be possible?A2: Our power inverter voltage range is set according to standard Lead-acid batteries, it would be some kind of difference from the lithium battery parameter. Pls show us your exact parameter of yours, then our Engineer will specially customize them for you in our factory. ········································································································································································· Q3:Do you accept OEM service?A3: Yes, We support OEM/ODM service. ········································································································································································· Q4: Can I take a sample for a test?A4: Yes, a Sample is available for us. ·······························································
