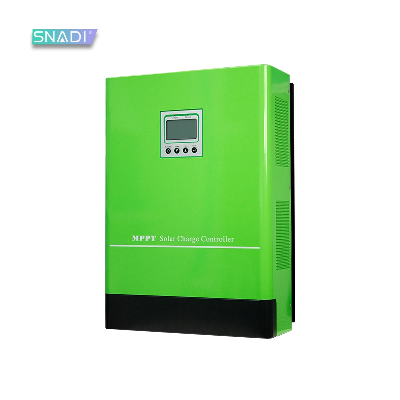

Snadi 96V 192V 100A off Grid MPPT Solar Charge Controller

Model 80A 100A Charging Mode MPPT Automactic Maximum Power Point Tracking Charging Method Three stages:Constant Current(MPPT),Balanced Charging,Floating Charge System Type 96V/192V Automatic Identification/Manual Setting System Identification Voltage Range 96V System DC72V-DC120V 192V System DC144V-DC240V Soft Start Time 96V/192V ≤10s Dynamic Response Recovery Time 96V/192V ≤500us Static Power 96V/192V ≤6W Machine Effciency 96V/192V ≥96.5% PV Module Utilization 96V/192V ≤99.97% Input Characteristics MPPT Operating Voltage Range 96V System DC130V-DC180V 192V System DC260V-DC420V Maximum Solar Panel nput Power 96V System 8500W 10600W 192V System 16000W 20000W Output Characteristics Optional Battery Type(Default is lead-acid maintenance-free battery) 96V/192V Lead-acid maintenance-free Battery,Gel Battery,Liquid Battery,Lithium Bttery(Can alao be customized forother types of battery) Current Limiting Protection 96V/192V 82A 102A Temperature Coefficient 96V/192V ±0.02%/ºC Temperature Compensation 96C/192V 14.2V-(Maxumum Temperature -25ºC)*0.3 /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
