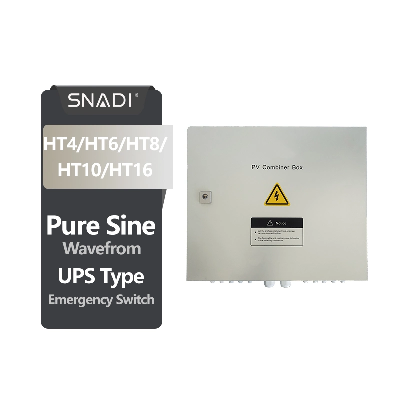

4/6/8/10/12 Strings Photovoltaic PV Solar Array Combiner Box

4/6/8/10/12 Strings Photovoltaic PV Solar Array Combiner Box   Product OverviewWith overall protection such as counterattack prevention over-current protection, over-voltage protection and lightning prevention.PV combiner boxes are used to reduce the connecting wires between a PV module and an inverter or controller,make maintenance easy, reduce the loss and improve product safety and reliabilityPV combiner box produced by us has all the functions above and provides users with a complete solution for PV power generation systemsMain FeaturesTechnical Parameter  ModelH4TH6TH8TH10TInput dataNumber of PV inputs46810Max. current of each PV input array10AFuse for each PV input array10AWire number of each PV input arrayPG7, 4mm2Output dataNumber of outputs12Maximum output current40A60A in all(30A/each output)80A in all(40A/each output)100A in all(50A/each output)Wire number of each outputPG16, 8mm2 for each outputPG16, 10mm2 for each outputPG16, 10mm2 for each outputPG16, 12mm2 for each outputMaximum output voltage800V DCDC output circuit breakeravailableOther dataProtectionIP65Temperature-30 to 60°CNet/gross weight (kg)5.3/9.38.4/12.99.5/14.310.8/15.6Dimensions340*300*140mm360*340*145mm400*420*145mmCooling methodnatural coolingSurge protectionavailableGround wire number≥6mm2Application for Solar Power system : FAQQ1 :What is the warranty of your product? A:Quality warranty for 12 months; parts will be shipped free during warranty period.Q2:Can you do OEM?A:Yes,we can offer OEM service.Q3 :How long is your lead time?A:5~10 daysQ4: What minimum order do you require?A:1 pieceQ5 :Why choose us?1)All of our products have CE certification,ISO9001:2008,RoHS.2)We have our own factory,the selling prices is competitive.3)Prompt delivery and good after-sale services.4)80% new materials for production and superior quality.5)professional engineer designers./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
