2500kVA/10kv Improving Electrical Grids with Amorphous Alloy Distribution Transformers

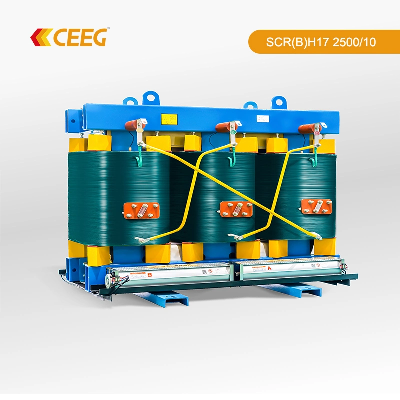

Product Description Specification BRIEF INTRODUCTION ABOUT CEEG'S SCRBH SERIES - The amorphous alloy dry-type transformer adopts CEEG's unique semi-encapsulated three-phase three-column patented technology. The heat resistance level is as high as the H level, and the main insulating material is as high as the C level. It has a stronger overload capacity and short-circuits resistance. The main models include SCRBH15, SCRBH17, and SCRB19, and have all obtained energy-saving product certification, first-class energy efficiency certification, earthquake resistance report, and various test certificates.Attributed to its great capacity and product features, SCRBH series amorphous alloy power transformers are professionally built for places with low power distribution utilization and high requirements for flammable, explosive, and fire prevention, such as cloud computing data centers, rural power grids, high-rise buildings, commercial centers, subways, airports, power plants, etc. FEATURES
. Using a high-quality amorphous alloy Nomex strip, the no-load loss is reduced by about 70%.2. The self-developed three-phase three-column structure covers a small area, and that ensures a much lighter-weight, easier installation.3. Vibration model simulation analysis is used to reduce noise effectively.4. Unique core suspension technology and end seal process to ensure low force on the core and low noise.5. Adopt a unique semi-envelope structure type with strong dustproof ability, high product insulation performance6. High mechanical strength, waterproof, and short circuit resistant.Product ParametersSCR(B)H15 series three-phase three-column amorphous alloy dry-type distribution transformerRated capacity: 30-2500kVA      High Voltage(KV): 10       Low voltage(KV): 0.4Connection group designation: Dyn11 /Yyno     Insulation level: LI75AC35/LI0AC3 Rated CapacitykVALoad Loss kWLoad Loss kWNo-Load Current% Pk(W)Short Circuit Impedance%LPA (AN ) dBLwA(AN)dbSizeWeight (KG)Installation size  100ºC(B)120ºC(B)145ºC(B)    1 x b x h (IPOO)(mm)Ik'k  1001241480157016900.5450621210x750x 12244153133151170660x 5501601622000213022800.4451631290x 750x 12944403133151370660 x 5502001902370253027100.4452641080x 760x 12413703454301370660 x 6602502192590276029600.4452641140x 760x 12613903454301590660 x 6603152663270347037300.3454661180x760x 13044003654501760660 x 6604002953750399042800.3454661280x 760x 13694303674502060660 x 6605003424590488052300.3455671280¥920x 13764353954782450660x 8206303905610596064000.3656681340x920x 13564554004782500820x 8208004566550696074600.3657691360x 920x 16414604004783090820x 82010005237650813087600.2657691420x1170 16714854034783500820x 1070125061891009690103000.2659711550x 1170x 17065254034784100820x 107016007221100011700125000.2660721560x 1170x 177153045452550901070x 107020009501360014400155000.2662741640x1170x 175656049656761001070x 1070250011401610017100184000.2662751740x 1170x 184659052058771701070x 1070Why choose us CUTTING-EDGE CORE TECHNOLOGY WHY COULD CEEG'S SCRBH SERIES TRANSFORMERS BE WIDELY CHOSEN?INDEPENDENT PRODUCTION LINE - Focusing on power transformer manufacturing for more than 30 years and CEEG has built multiple independent production lines including the essential amorphous alloy iron core and also developed an exclusive professional manufacturing process.EXCLUSIVE PATENTED TECHNOLOGY - CEEG's core technology of three-phase and three-column has been awarded the National patent, guaranteeing a much light-weight, and promoted our power transformer's capacity to a higher level, gaining recognition from our customers all over the world.ADVANCED MATERIALS DEVELOPED WITH DUPONT NOMEX® - CEEG has built a solid cooperative relationship since 1999 with DuPont, the pioneer in the global power industry. With the technology developed in cooperation with DuPont, CEEG applied the advanced insulation systems to the power transformers manufacturing, ensuring a longer using life-span, and lower no-load loss.GREATER CAPACITY OF MATERIALS - WHY DO WE USE AMORPHOUS ALLOY STRIPS?THE COMPARISON BETWEEN AMORPHOUS ALLOY & ORIENTED ELECTRICAL STEEL  PARAMETER CHARACTERISTICS AMORPHOUS ALLOY 2605SA1   ORIENTED ELECTRICAL STEEL      MAGNETICIRON LOSS W 13/50Hz(25ºC)SATURATION FLUX DENSITY(25ºC)CURIE TEMPERATURE                         0.1W/ kg                             1.56T                             415ºC                          0.86W / kg                                2.0T                               745ºCPHYSICAL                                            DENSITY                LAMINATION FACTOR                      RIGIDITY Hv                      RESISTIVITY                        7.18g / cm³                           >85%                             860                        130μ Ωcm                            7.65g / cm³                               >94%                                180                             45μ ΩcmSIZE                         BREADTH                        THICKNESS
