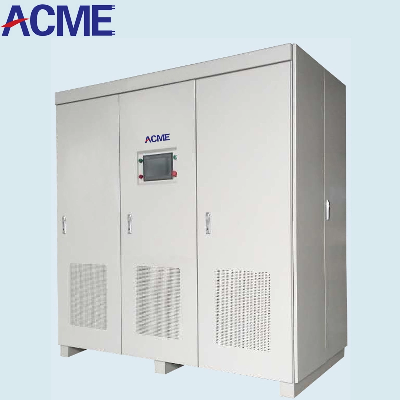

Three Phase 200kVA Frequency Converter of 50Hz 60Hz

Product introductionProduct introductionACME60 series variable frequency power supply is specially designed and manufactured for 60Hz import and export equipment, can be used as the import of 60Hz electrical equipment and production line power supply, can also be used as a test power supply for export electrical products production line. In line with the European and American power supply system, the design of the national standard "GB/T 260.3-2003", "GB/T260.2-2003", the national military standard "GJB181A-2003", "Jb G572-88" technical conditions. Its main features are the provision of low harmonic distortion, high stability frequency and regulatory rate of pure and reliable sine wave power output. In addition, it can support high frequencies of 400Hz avionics and military equipment. ACME60 series of variable frequency power supply can solve almost all power supply problems, such as high voltage, low voltage, voltage instantaneous drop, reduced oscillation, high voltage pulse, voltage fluctuation, surge voltage, harmonic distortion, clutter interference, frequency fluctuations and other power supply problems.Technical features:Multi-functional AC source test equipment - simulates different types of power supply around the world, supporting 400HZ frequency of defense military detection, avionics and navigation, communications and other equipment.Produces a pure AC output power supply - powerful direct digital synthesis (DDS) type sine waveform generation, sine wave output pure, low harmonic distortion.Excellent stability - output load voltage stability ≤±1%, output frequency ≤0.01% (the output frequency is generated by quartz oscillation, so it has a very stable and accurate frequency).The reaction speed is fast - 100% load/deload, the output load can be stabilized in 2ms in the range of ±1%.Many protection functions - with overvoltage, overcurrent, over-high temperature, IGBT drive proprietary technology, output short-circuit protection to ensure that not damaged by short-circuit load.High overload capacity - 100% full load long-term use, instant current can withstand 3 times the rated current, and does not cause voltage drop, a variety of loads can be used. The human-machine interface is good - voltage, frequency, current, power/PF measurement digital display, accuracy up to 0.5 levels, source table integrated, simple operation.Technical Parameters:ModelACME60-33060ACME60-33100ACME60-33150ACME60-33200ACME60-33300ACME60-33450Capacity6KVA10KVA15KVA20KVA30KVA45KVACircuit modelIGBT/SPWM InputPhaseThree phaseVoltage 380v+-10% or customizedFrequency50Hz/60Hz +-10%OutputPhase Three phaseWave Pure sine waveVoltagePhase vol.L:0-150v  H:0-300vWire vol.L:0-260v  H:0-520vCurrentLow16.8A27.6A41.6A56A84A126AHigh8.4A13.8A20.8A28A43A63AVoltage stabilityNo more than 1%Load stability No more than 1%Frequency 50hz, 60hz, 45-65hz adjustable or customizedFrequency stabilityNo more than 0.01%THDNo more than 2%EfficiencyNo less than 94% at 100% loadReaction timeNo more than 2msDisplayFrequency, voltage, current, power or PF 4 number displayProtection functionover voltage, over current, over temperature, over load, short circuit, and automatic alarmInsulation resistance>500Vdc 10MΩPressure endurance1800Vac/5mA/1minuteCooling model    Compulsive fan coolingWorking temperature-10ºC-45ºCRelative humidity0-90%(No condensing)Altitude500Vdc 10MΩPressure endurance1800Vac/5mA/1minuteCooling model    Compulsive fan coolingWorking temperature-10ºC-45ºCRelative humidity0-90%(No condensing)Altitude500Vdc 10MΩPressure endurance1800Vac/5mA/1minuteCooling model    Compulsive fan coolingWorking temperature-10ºC-45ºCRelative humidity0-90%(No condensing)Altitude
