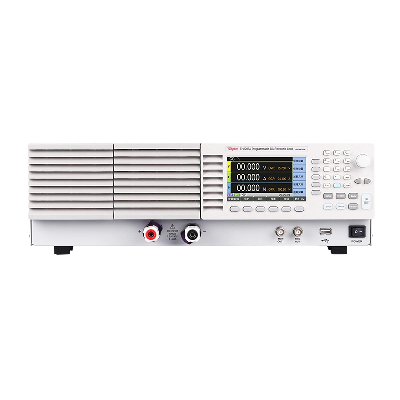

Th8203A Programmable DC Electronic Load Battery Load Measuring 150V/80A/700W

Product Descriptionhttps://ckt2017.en.made-in-china.com/company-Changzhou-Chuangkai-Electronic-Co-Ltd-.htmlBrief IntroductionConstant current (CC), constant resistance (CR), constant  power (CV), constant power (CP) operation mode Current remote control monitoring function, external trigger  function 1mV/10μA high resolution, ripple measurement function Dynamic current/voltage test, up to 50K dynamic frequency Voltage and current measurement can achieve high precision  while testing speed up to 100KHz Programmable soft start function CR-LED test, arbitrary I-V characteristics, battery test, dynamic  scan test, load effect, list function and many other advanced  functions Overvoltage (programmable), low voltage, over current  (programmable), overpower (programmable), overheating, anti-reverse protection, etc. Remote voltage compensation input test function Short circuit function simulation The adoption of the Linux operating system makes the number  of internal parameter file storages essentially unrestricted Perfect U disk function (parameter file storage and loading,  interface screenshot, system firmware upgrade) Setting parameters support power-off memory function Intelligent temperature control fan RS232 (standard), USB (standard), Ethernet (standard), WIFI  (optional) Matching with upper-computer software to achieve remote  operation and monitoring matching SPECIFICATIONModelTH8201TH8202TH8202ATH8203TH8204Input Vltage1-150VCurrent0-400mA0-4A0-40A0-800mA0-8A0-80A0-400mA0-4A0-40A0-1.6A0-16A0-160A0-2.4A0-24A0-240APower0-1.75W0-17.5W0-175W0-3.5W0-35W0-350W0-3.5W0-35W0-350W0-7.0W0-70W0-700W0-10.5W0-105W0-1050WStatic Mdemode (constant current mode) CR mode (constant resistance mode) CV mode (constant voltage mode) CP mode(constant power mode)Accuracy0.2% F.S.0.2% F.S.0.2% F.S.0.2% F.S.0.2% F.S.Dynamic ModeFrequency Range100Hz~50kHz/0.01Hz~1kHz100Hz~50kHz/0.01Hz~1kHz100Hz~50kHz/0.01Hz~1kHz100Hz~50kHz/0.01Hz~1kHz100Hz~50kHz/0.01Hz~1kHzAccuracy1µs/1ms+100ppm1µs/1ms+100ppm1µs/1ms+100ppm1µs/1ms+100ppm1µs/1ms+100ppmExternal Waveform Mode (20kHz) : CCControl level range 0~10V     accuracy: 0.5%F.S.Range0-400mA0-4A0-40A0-800mA0-8A0-80A0-400mA0-4A0-40A0-1.6A0-16A0-160A0-2.4A0-24A0-240ASoft StartSetting range: 0~500ms   accuracy ±(30%+100µs)Front Panel BNC TerminalTRIG OUTThe output pulse level is about 4.5V, the output pulse width is about 2μs, and the output impedance is about 500ΩMON OUTVoltage detection output, the corresponding full-scale current is 1VProtection functionOvervoltage Protection (OVP) Overcurrent Protection (OCP) Over Power Protection (OPP) Over TemperatureInterfaceHandler,RS232,USB DEVICE,USB HOST,LAN  Detailed PhotosPackaging & Shippinghttps://ckt2017.en.made-in-china.com/contact-info.htmlCompany Profilehttps://ckt2017.en.made-in-china.com/product-list-1.htmlChuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc. FAQ:Q. How is your company's product after-sales service system? A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service. Q: Can you customize it? A: Yes, we accept customization according to customer's specific requirements. Q. How long is your lead time? If I want to customize instruments, how long will it take? A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days. Q. What payment method do you accept? A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on. Q. What package do you use for your products? What shipping method do you use? A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements. For more questions, please feel free to send inquiries to us.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
