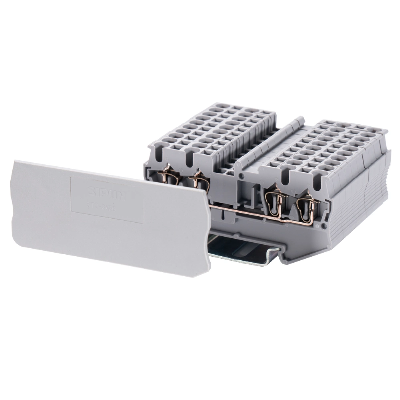

2.5mm DIN Rail Screwless Spring Cage Quattro Terminal Block

ST3 Series Spring-cage Terminal Block        The ST3 series of cage-type spring terminal blocks, its designs conform to the standard of IEC60947-7-1, IEC60947-7-2, GB14048.7 and GB14048.8.        This product is apply to ac 50Hz(60Hz), and the maximum nominal voltage and rated cross section are 800V and 1.5-35mm, respectively.        Besides, it is small and easy to use and has a good resistance to shock.        The frontal incoming line ensures the good operation visibility, and this saves the space of incoming line.Model Name:ST3-2.5/2X2W/L/H mm:5.2*72.5*35.6Rated Voltage (V):800Rated Current (A):24Solid Wire Range mm:0.2-4Flexible Wire Range mm:0.2-2.5Stripping Length mm:10Material of Shell:PA66Material of Conductor:CopperInstall Rail:TH35-7.5 / TH35-15Cover:ST3-2.5/2X2GJumperUFB 10-5MarkerZB5                        FAQ                               Q1 : Are you manufacturer ?                               We are factory specializing in Terminal Blocks.                            Q2: Can you make customized products?                               Of course, our R&D have rich experience in OEM service.  Product can be customized as demanded.                            Q3:What about your MOQ?                               We keep large stocks for standard product with Fast Delivery, no MOQ required.                            Q4: Do you have any test certification?                               Products approved by CE, RoHs, etc.  Our factory passed byCQC ISO9001 Qualification.                            Q5: How about the after-sale service?                                If you have any problems after sales, we'll bring out solution within 24 hours. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
