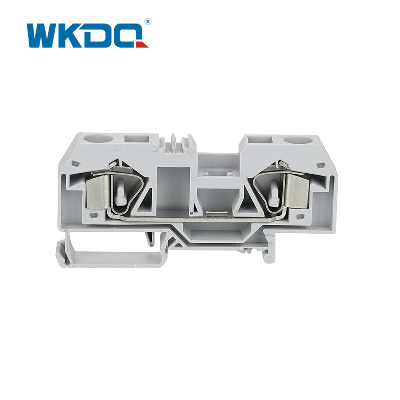

283-901 Din Mounting Push Wire Spring Cage Terminal Block 1. DESCRIPTION: The top entry terminal blocks, with Push-in CAGE CLAMP, including screwdriver termination of stranded conductors, with the added benefit of directly inserting solid or ferruled conductors. Made from anti Inflaming Nylon PA 66, Tin plated brass metal.Have a long-standing reputation for ensuring safe and maintenance-free system operation in a wide variety of industrial applications and modern building installations.Do not need to prepare the conductor before termination,solid, stranded and fine-stranded conductors with ferrules are terminated by simply pushing them in. Installation Terminal Blocks provide fast and safe installation for building wiring applications.Available in a line of accessories: End covers, end brackets, bridges, marker strips. Etc.Technical ParametersPart No.283-901Color Grey, other color can be customizedLength/Height/Wide (mm)94/44/12Connection methodSpring-cage connectionMaterialNylon PA66Rated Voltage/Current800V/76ACross section0.2-16mm² Conductor Size24-6 AWGMounting TypeNS 35/7.5StandardIEC 60947-7-1LOGOCustomized logo are supportedPacking Detail36.78g/pc, 25PCS/BOX,500PCS/CTNCertificationCE/RoHS/CQC/ISO 9001FAQQ1 : Are you manufacturer ? We are factory specializing in Terminal Blocks, Fans Filters Since 1999.Q2: Can you make customized products or packing? Of course, our R&D Depart. have rich experience in OEM, ODM service. Package can be customized as demanded.Q3:What about your MOQ? We keep large stocks for standard product with Fast Delivery, no MOQ required.Q4: Do you have any test certification? Products approved by CE, RoHs, etc. Our factory passed by SGS and CQC ISO9001 Qualification.Q5: How about the after-sale service? What's the warranty terms? If you have any problems after sales, we'll bring out solution within 24 hours. Quality warranty is 1 year, for problems happened over 1 year, we can also assist to solve. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
