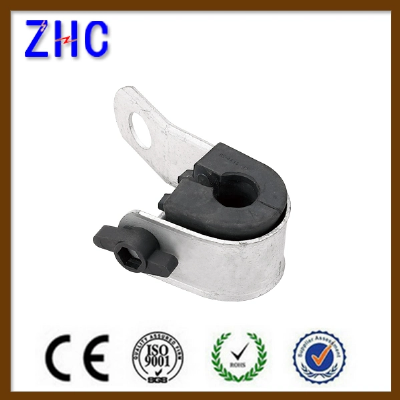

Suspension Clamps and Assembly for Self Supporting System

ApplicationThese products are designed to hang the LV ABC insulated lines using an insulated neutral messengerDescriptionThe assembly is made of the suspension clamp itself equipped with an adjustable grip device, the body is linked to the aluminium alloy die casted bracket by a movable linkSuspension clamp and movable link are made of anti UV stabilized black thermoplastic fiber glass reinforced.This assembly is ready to be installed on the pole using either one bolt M16 or 2stainless steel straps 20x0.7mmFeatures & BenefitsRange taking 25-95 mm²Delivered as one assemblyNo tool needed for the installation thanks to the adjustable grip deviceEquipped with a movable link which allows articulation between the clamp and the bracketEnd stops on the bracket to ensure movement limitation of the clampBracket is specially designed to install directly the pulley on it during LV ABC lines erectionAll the components are not losable PerfomancesThis suspension assembly is in line with the French standard NF C 33 040 and the new European standard EN 50483-3Mechanical tests (breaking load of 12kN)Slip tests on cables (no slippage below 300N)Dielectric voltage test (4kV in air)Environmental tests (climatic and corrosion)CODECONDUCTORRANGE(MM2)STANDARDZC9416-95MM2NFC33-040ZC9516-95MM2NFC33-0401.1A16-95MM2NFC33-0401.1B16-95MM2NFC33-040ES54-1416-95MM2NFC33-040PS150016-95MM2NFC33-040SHC-14X16-35NFC33-040SHC-24X120+50NFC33-040SHC-34X50-70NFC33-040SHC-44X50-70NFC33-040SHC-54X70-95NFC33-040SHC-64X70-95NFC33-040Free Samples Are offered!About US:Our company in the R&D, manufacture and sale of low voltage electric applicants, such as industrial plug , aerial fittings, switches, distribution box and other related products. Our factory, with the aim of high quality and low price, offers superior OEM services, and has accumulated abundant experience in manufacturing low voltage.1.We already get the certificate of ISO9001, CE, SGS , ROHS2.We have 10 years of manufacture and 8 years exporting experience.3.We have completely sales service system, ensure every detail is going smooth.4.We have new designed products each year by our R&D Department.5.Perfect testing system ensure each product is qualified.6.We have a good reputation in Russia,Spain, India, Thailand, south American,Mid-east market and so on.How to Order?1. Please let us know what kind of model .2. Proforma invoice (PI) will be sent to you.3. Please check and confirm the PI.4. Once we confirmed the order, please pay the discussed deposit soon.5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.6. OEM/ODM is welcomed. .Shipping:1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).2. We Provide Drop shipping Service.3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.Payment:1. TT or L/C at sight.2. 30% deposit and 70% against shipping documents.Warranty:1.We provide 2 year quality warranty.2. If the product is defective, please notify us within 3 days of delivery.3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods .
