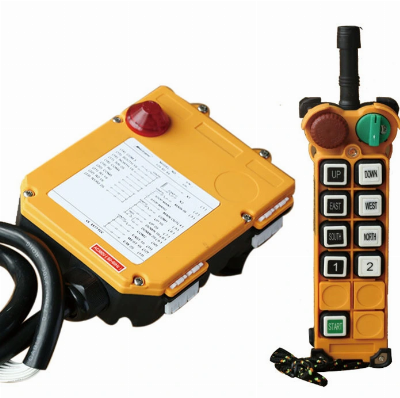

F24-8d Telecrane Industrial Radio Remote Controls System

F24-8D Telecrane Industrial Radio Remote Controls System  Brief information:1. More than 10 years researching and exporting experience in Radio Remote Control industry.2.  Well and high quality control, all working process according to ISO9001:2008.3. CE, FCC & ISO certificates.4. One year warranty.5. Sample order acceptable.6. OEM acceptable.Photos:Specification:  ApplicationOverhead cranes, hoist ,chain hoist and other industrial machine.Frequency310.0325~331.165MhzFrequency generation: Crystal (plug in) Channel80Channel Spacing0.2675MHzControl motions13Control distanceUp to 100mCertificatesCE, FCC, ISO9001:2008Number of push button8 Double speed push button+1 start+1 Emergency stop button.Unique codeOver 4.3billon unique ID codes .Working temperature-35°C ~ +80°CEnclosure protection classIP65Transmitter power AA-size batteriesReceiver powerAC 380v/220V/110v/48v/ 36v/24v or AC/DC12VOutput capacityFull sealed relay output with 5 amperesWarranty 1 yearMaterial glass fiberWiring Diagram of Receiver:Standard configuration:                                     One transmitter;                          One receiver;                          One 1.8 m cable connect with receiver;                          One operation and maintain manual.  Products Features:* 8Dual speed push button+1start button+1 Emergency stop button.* Control points are up to 13.* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.* With the Rotate key switch to guarantee the safety. * Set the internal functions by computer interface.* Up/down, east/west, south/ north push button can be set mutual inhibition or not.* Power button can be set start, speed up, jump strokes, ordinary etc.* Spare 1-2,  key can be set ordinary, interlock, jump strokes, switch etc. Products Application: MD double speed electric hoist or double speed electric chain hoist with  hook,monorails ,double hook /single speed hoist crane, and used for the industrial remote control which are under16 connections.Customer visit Factory:Certificates:If you are interest this products; please feel free to contact us/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
