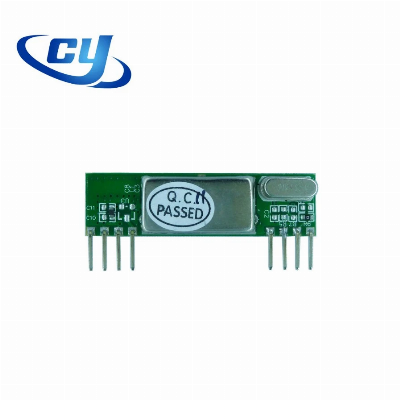

Cy07-V1.1 Transistor IC Electronic Component Receiver Module

CY07-V1.1 ASK Super Heterodyne RF Wireless Receiver Module for 433mhz 315mhz 433.92mhz 868mhzDESCRIPTION:The CY07-V1.1 is a ASK/OOK compatible super heterodyne wireless receiving module with high performance for ISM frequency band. With the adoption of European brand RF wireless data transferring/receiver chipsets, that the model has a high receiving sensitivity and strong ability of resisting.  From wireless signal input to data output can be done without any electrical circuit.  User only use extra simple data decode circuit can achieve wireless products development.  CY07-V1.1 is for commercial level version. FEATURES: Frequency: 315MHz/433.92MHz (custom frequency is available); High sensitivity -110dBm@433.92 1kbps BER10E-2; supply voltage: VCC= 3.6to 5.5 V; IF band: 230KHz; Low power consumption: 4.8mA@315M, 6mA@433.92M. Excellent selectivity and noise rejection;APPLICATION:Remote gate controls Remote keyless entry Car alarm systems wireless security systems Automation systemsPin NamePin DefinitionANTAntenna InGNDConnect to negative power supplyGNDConnect to negative power supply  VCCConnect to positive power supply VCCConnect to positive power supply DEROptional output:1,  DATA output(default setting)2,  Battery Saving Mode(Working mode in low level input)(Sleeping mode in high level input) DATAData OutputGNDConnect to negative power supply/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
