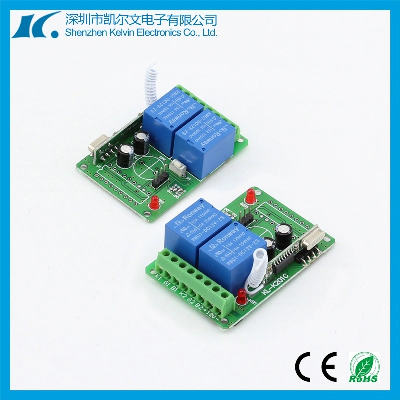

Universal Electric Remote Control on off Switch with 433MHz Kl-K201c

Universal Electric Remote Control on off Switch with 433MHz KL-K201COperation Method:1. Match code:Hold learning button and learning indicator light blinks, then press any buttons of remote control, if indicator flashes 3 times, matching is done. Maximum 20 remote controls can be matched.2. Delete code:Hold learning button till the indicator LED lights and then off, delete successfully.3. Set working mode: S1 & S2 program the sequence as follows: Jumper on S1→ ToggleJumper on S2→ LatchingNo Jumper on S1 &S2→ MomentaryTech Data:DC 12V 2-Channel Remote Control Switch KL-K201CInputDC 12V (DC9V, 24V can be customized)Channels2Working Current8mAWorking Frequency433MHz / 315MHz, OptionalReceiving Sensitivity-103dBmDecoding TypeLeaning Code(EV1527) / Fixed Code(PT2262)Working ModeMomentary / Toggle / LatchingOutput ModeSwitching Signal (Dry Contact)Max Load5A (Relay Contact)Dimension58*40*15mmWorking Mode:1. Momentary: Press remote button A, the corresponding relay on the receiver is on; release button A, the relay is off, the same as others.2. Toggle: Press remote button A, the corresponding relay on the receiver is on; press button A again, the relay is off, the same as others.3. Latching: Press remote button A, the relay A is on, B is off; press button B, the relay B is on, A is off.Wiring Way & Diagram:B=Normally Closed, K=Normally Open, G=Common.Please refer to below picture as wiring diagram:Shipping1) Express: DHL, FedEx, UPS, TNT, EMS, etc.2) By air3) By sea4) By special lineDepends on buyer's requirement.  Our website:http://szklvn.en.made-in-china.com/ /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
