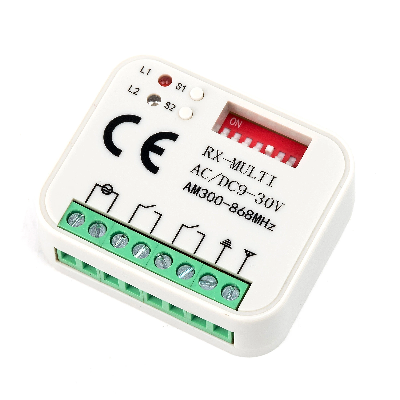

Universal 12V/24V 2 Channel Gate/Garage Door Remote Control Receiver

Universal 12V/24V 2 Channel Gate/Garage Door Remote Control ReceiverQuick Details:1.Product name:Receiver 2.Brand Name:Juhui 3.Model Number:JH-KIT06  4.Place of Origin:Fujian, China (Mainland) 5.Channel:2-CH(1CH optional) 6.Case:Plastic and metal part 7.Usage:Universal 8.Function:Garage door opener receiver 9.Frequency:433.92MHZ /315MHZ /330MHZ 10.Code:HCS301,SC2260,EV1527ect. 11.Andvantage-1:Eeasy Operation 12.Andvantage-2:Operation of distance -100m 13.Certificate:CE,ROHS,FCC,ISO9001,TUV etc. 14.MOQ:10Pcs 15.Trade Terms:FOB or EXW 16.Working voltage:12V-24VDC 17.Receiver mode:Superheterodyne 18.Encode:Fixed code and rolling code 19.Static current:5mA±2 20.Working current:50-200mA 21.Range:60-150m in unobstructed area 22.Memory capacity:140 remotes controls 23.Wire connect:Terminal block 24.Control mode:Continuous output (bistable) or momentary output(monostable). 25.Receive sensitivity:-113dBm (max) 26.Dimensions(L x W x T):125*75*35mm 27.Net weight:96g 28.Output mode:Dry contact (+12V or -12V optional) Usage:The remote controller can be made with different decode and frequency and channels as your request.They are widely used in garage door remote controller, rolling door remote controller, sliding gate, remote controller electric vehicle alarm remote controller, motorcycle alarm remote controller, ceiling fan remote controller etc. A.Feature1.Copy function 2.Simple and easy to learn the code, the user can learn to operate on their own 3.You can choose bistable (continuous ouput) or monostable( momentary output) directly when learning code with remote control. 4.The receiver is use-friend.We can produce them with different code remote control as your request .The receiver is widely used as motorcycle alarm receiver, electric vehicle alarm receiver, sliding gate receiver, auto gate receiver, sliding door receiver, rolling door receiver, ceiling fan receiver  etc. 5.Wide copy range, part of the fixed chip model :Ev1527 Ev527 PT2240 PT2260 PT2262 FP527 HT12E HT6P20B HT600 HT680 HT6207 HT6010 AX5326P SMC5326-3 SMC5326-4 SMC918 SMC918-3 SMC918-4 And so on B.Function LED:1.When electrified, LED lights 1 second, it's ready to work. 2.LEARNING CODE:Press P1 (1 second at least), LED lights (1 second) and goes off( 1 second) and lights again, now press any button of the remote, if the code is learnt LED will go off.Then release the button of the remote.If the remote cannot read the signal, LED will light for 10 seconds and finish learning status. 3.PROGRAMMING METHOD: A.Press   ProgrammingLEDGreen LED for power indicationRed LED for learning code indicationLearning codeS1 for learning button of MonostableS2 for learning button of BistableLearning code with Monostable :First relay:Press S1 1 time, red LED light (about 1second) to flash 1 time to light ( receive the signal from remote control).Second relay:Press S1 1 time, red LED light (about 1second) to flash 2 times to light ( receive the signal from remote control).Third relay:Press S1 1 time, red LED light (about 1second) to flash 3 times to light ( receive the signal from remote control).Forth relay:Press S1 1 time, red LED light (about 1second) to flash 4 times to light ( receive the signal from remote control).Now keep the remote control and receiver close, press any button of the remote control , the red LED will off and relay close if have learnt the code from remote control successfully, if remote control not receive the signal in 5s, the red Led is off automatically which exit learning code mode Learning code with Bistable:First relay:Press S2 1 time, red LED light (about 1second) to flash 1 time to light ( receive the signal from remote control).Second relay:Press S2 1 time, red LED light (about 1second) to flash 2 times to light ( receive the signal from remote control).Third relay:Press S2 1 time, red LED light (about 1second) to flash 3 times to light ( receive the signal from remote control).Forth relay:Press S2 1 time, red LED light (about 1second) to flash 4 times to light ( receive the signal from remote control).Now keep the remote control and receiver close, press any button of the remote control , the red LED will off and relay close if have learnt the code from remote control successfully, if remote control not receive the signal in 5s, the red Led is off automatically which exit learning code mode(3):Remove code:Long press S1 or S2 for 5s, when the red LED flash then turn off, which means remove the code successfully Note:If remove the code careless, the unit system can't resume it. Our CompanyQuanzhou Juhui Electronic Co., Ltd is a high-tech company that specializes in designing, manufacturing and selling Alarm system ,wireless RF receiver (remote controller), RF Remote control ( key fob and transmitter), RF module (wireless transmitter Module and Receiver Module), Remote Control Duplicator( face to face copying duplicator and machine copy duplicator).We have been manufacturing electronic product for 10 years .Our professional R&D staff can
