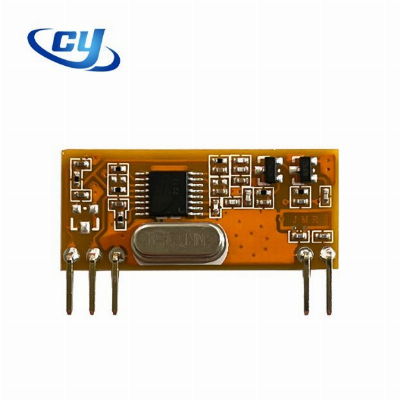

Cy63 Super-Heterodyne 315 433.93MHz RF Wireless Receiver Module

Description:CY63 is a high quality super-heterodyne receiver module with VHF/UHF. The module is designed based upon markets' feedback and a lot of customers' advice. It has shocked in the electronic products market. The module adopting LSI circuit with high frequency and low noise which is imported from famous company of Europe. It has strong anti-static protection, high reliability and competitive price. Its widely used in remote GDO (garage door opener), auto-gates as retract type, brakes, GSM/GPS system, factory automatic, communication and security system, etc.Features:Frequency: 315M/433.92 MHz(custom frequency is available) Compact hybrid modules Single conversion superhet 10.7MHz high rejection IF filter Receiving range up to 600 metersCMOS/TTL compatible outputSupply voltage 4.5-5.5VHigher receiver sensitivity up to-114dBmLO is determined by the SAWExcellent ability of noise immunity against interfering source A high degree of suppress assemble or scatter radiation Can easily pass kinds of certification Temperature Range:-40ºC ~ 85ºCApplicationGarage door and gate openers Remote controls Remote fan and light control Smart home systemAlarm and security systemPin DescriptionPin-out as showed in figure 1 abovePin NamePin DefinitionANTAntenna inGNDConnect to negative power supplyGNDConnect to negative power supplyDATAData outputVCCConnect to positive power supplyNote 1: ANT pin is a 50 ohm antenna input. The length is about:  23cm for 315MHz17cm for 433.92MHzElectrical Characteristics:Condition: Ta=25ºC Vcc=5.0V Frequency=315MHzParameterSpecificationUnitConditionMin.Typ.Max.Frequency Range314.90315315.10MHzOther freq. availableReceiver Sensitivity -114 dBm Data Rate0.58 4.8KbpsManchester codeSupply Voltage, VDD4.55.05.5VDCCurrent  12mADCOperating Temperature-40 85ºC Condition: Ta=25ºC Vcc=5.0V Frequency=433.92MHzParameterSpecificationUnitConditionMin.Typ.Max.Frequency Range433.82433.92434.02MHzOther freq. availableReceiver Sensitivity -114 dBm Data Rate0.58 4.8KbpsManchester codeSupply Voltage, VDD4.55.05.5VDCCurrent  12mADCOperating Temperature-40 85ºC Mechanical Size: (Unit: MM)  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
