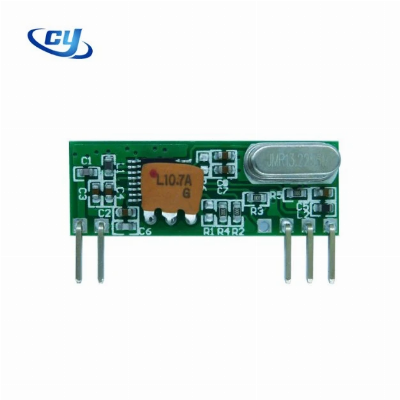

Cy53 High Sensitivity Ask 315 MHz 433MHz RF Data Receiver Module

Description:The CY53 is a ASK compatible superhet receiver, which is designed with high sensitivity, long distance and easy to adapt when designing various applications.Features:Frequency: 315/433.92MHz (custom frequency is available)Low power consumption          Higher stabilityHigher sensitivity: -112dBmWide operating temperature:-40~85ºCSupply voltage: 2.4~ 5.8VLow current: 2.7mA(5V, 315MHz)Be compatible with most (ASK/OOK) transmittersApplicationSmart home system Remote controls Remote fan and light control Garage door and gate openers Alarm and security systemPin DescriptionPlease note: CY53 is come with standard 5 PINs (without the red colored EN pin). Please notify us if you would like 6 PINs.Pin NamePin DefinitionANTRF signal input pin, connect antenna outside(Note1)GNDConnect to negative power supplyENOptional output:Empty(Default as empty pin);Battery saving mode(shut down)(Working mode in High level input)(Sleeping mode in Low level input) GNDConnect to negative power supplyDATAData output pin, connect to MCU or decoder's input pinVCCConnect to positive power supplyNote1:  ANT pin is a 50 ohm antenna input. The length is about: 23cm for 315MHz  17cm for 433.92MHzElectrical Characteristics:Condition: Ta=25ºC Vcc=5.0V Frequency=315MHzParameterSpecificationUnitConditionMin.Typ.Max.Frequency Range314.90315315.10MHzOther freq. availableReceiver Sensitivity -112 dBmBER=10E-2Data Rate0.581.24.8KbpsManchester codeSupply Voltage, VDD3.65.05.5VDCCurrent2.62.72.8mADCOperating Temperature-40 +85ºC Condition: Ta=25ºC Vcc=5.0V Frequency=433.92MHzParameter SpecificationUnitConditionMin.Typ.Max.Frequency Range433.82 433.92434.02MHz Other freq availableReceiver Sensitivity -112 dBm BER=10E-2Data Rate0.581.24.8KbpsManchester codeSupply Voltage, VDD3.6 5.05.5 VDCCurrent 2.93.0 3.1mADCOperating Temperature-40  +85ºC Mechanical Size: (Unit: MM)    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
