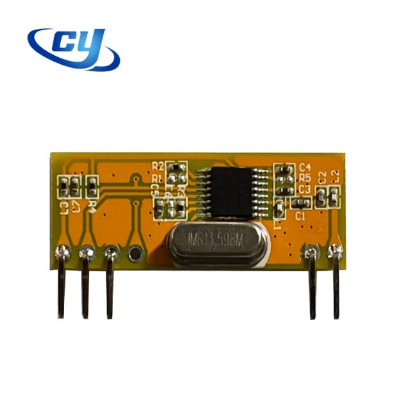

Cy51 Ask/Ook Super-Heterodyne 315 433.92 MHz RF Receiver Module

Description:The CY51 is an ASK/OOK compatible super heterodyne wireless receiving module with high performance for ISM frequency band. With the adoption of high-quality RF wireless data transferring/receiver chipset, the module has advantages at high receiving sensitivity and strong interference performance. From wireless signal input to data output can be done without any electrical circuit. User only use extra simple data decode circuit can achieve wireless products development.Features:Receive sensitivity reaches -114dBm;Working frequency: 315 MHz; 433.92 MHz; (Special frequency can be customized according to customer requirements);Power supply voltage input range: 1.8V-5.5V;Low power consumption, 5.0V @ 315MHz, 4.3mA; 5.0V @ 433.92MHz, 4.6mA Good selectivity and stray radiation suppression ability, easy to pass CE / FCC international certificationGood local oscillation radiation suppression ability, can work with multiple receiving modules (single transmission and multiple reception) without interference with each other, use together without Affect the receiving distance.Temperature range: -20-70 ºC, it can work normally even in harsh ambient temperature.ApplicationCar remote control door switch (RKE)Remote door openerWireless security alarmWireless door bellDrying racks, garbage disposals and other products with motor interferencePin DescriptionPin-out as showed in figure 1 abovePin NamePin DefinitionANTRF signal input pin, connect antenna outside(Note1)GNDConnect to negative power supplyENBattery saving mode(shut down)(Working mode in High level input)(Sleeping mode in Low level input) GNDConnect to negative power supplyDATAData output pin, connect to MCU or decoder's input pin+5VConnect to positive power supplyNote 1: ANT pin is a 50 ohm antenna input. The length is about:  23cm for 315MHz17cm for 433.92MHzElectrical Characteristics:Condition: Ta=25ºC Vcc=5V Frequency=315MHzCharacteristicsSpecificationUnitNoteMin.Typ.Max.Frequency Range314.9315315.1MHz ModulationASK  RF Sensitivity -114 dBm50Ohm antenna input directly/1K KbpsReceiving Bandwidth 200 KHz Working Current3.64.35.0mA Decoding output max. voltage2.43.755VRL=500KDecoding output min. voltage  0.5V Operating Temperature-20 70ºC Condition: Ta=25ºC Vcc=5V Frequency=433.92MHzCharacteristicsSpecificationUnitNoteMin.Typ.Max.Frequency Range433.82433.92434.02MHz ModulationASK  RF Sensitivity -114 dBm50Ohm antenna input directly/1K KbpsReceiving Bandwidth 200 KHz Current3.94.65.3mA Decoding output max. voltage2.43.755VRL=500KDecoding output min. voltage  0.5V Operating Temperature-20 70ºC Mechanical Size: (Unit: MM)Cautions:The drive current of the data output pin is relatively weak. If the MCU is directly driven, the I/O port must not be connected to the pull-up or pull-down resistor, and the inside pull-up or pull-down resistor must be set in the disabled state.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
