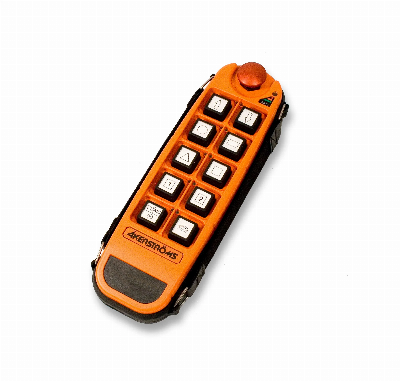

Akerstrom Sweden Radio Wireless Remote Control System

REMOTUS JUPITER Era 4/6/8B, 10BDIntroductionRemotus is Åkerströms product family for radio remote control of safety critical industrial and mobile ap- plications. Remotus Jupiter is Åkerströms' standardized industrial remote control product line.The manual must be used when installing Åkerströms Remotus system to ensure a secure and safe operation. This manual only covers the installation of the Remotus radio remote control system. Remotus does not include a complete system for remote control: it has only a set of outputs that is controlled by the operator with the transmitter switches and joysticks. How the outputs are used to control the object (for example, a machine's movements and brakes) depend on the specific installation and is outside the scope of the Re- motus system.It is the responsibility of the Systems Integrator or Machine builder to safely incorporate the Remotus radio remote control into the complete system or machine. The System Integration has to be made by qualified personnel applying the appropriate standards for the system or machine including making the necessary safety investigations and risk analysis.It should be noted that the information obtained from the controlled object is not processed by the Remotus receiver, but is used for informational purposes.For the reasons stated above, the safety of Remotus covers mainly the status of the relay outputs, regardless of the object that is controlled by the relays.The interface between Remotus and the controlled object should be a special interface that is not included in Remotus system and therefore is not included in this installation manual.The approvals for Remotus refer only to the Remotus system not the complete system.The complete radio control system must be tested and approved in accordance with applicable standards. It is not part of Åkerströms Björbos responsibility.Remote Controller PicturesSpecifications  General:Operating frequency:433-434 MHzPower output:< 10 mWBaud rate:9600 b/sTransmission principle:GFSK, TDMAChannel Separation:25 kHzFunctional sensitivity:≤-107 dBm BER 10-3The radio full-fills:R&TTE Directive 99/5ECReaction time on STOP function:Maximum 550 msSafety category for the Stop functionISO 13849-1 Category 3 PL dReceiver RX161:16 Relay outputs:6 safety relays (NO) for movements4 change-over relays (NO/NC)6 normally open relays (NO)  2 Separate main contactor change over safety relays1 Digital output for horn (siren)12V1 Analogue input:0 (4) -20 mA or 0(2)-10 V2 Digital inputs:24/48 V AC/DC (Opto-isolated) or 115/230 V AC (Opto-isolated)1 Serial port:RS422/RS485Input voltage:24/48/115/230 V AC, power consumption less than 14 VA or 24 V DC 0.5 A. Shall be connected to SELV circuits.Dimensions:277x217x115 mmWeight:Approximately 1.6 kgDegree of protection (plastic encolsure):IP67Operating temperature:-25 °C - +55 °CStorage temperature:-40 °C - +85 °CTransmitterAQ80:TX50:Dimensions:181 x 65 x 43 mm243x77x41 (49 mm incl. quick stop)Weight:265 g450 gDegree of protection:IP67IP65Display, Graphic LCD:128x64 pixels102*64 pixelsOperating Temperature for battery:-20 °C - +55 °CStorage Temperature for battery:-20 °C - +35 °CCharging Temperature for battery:+10 °C - +45 °CNOTE! For charging see charger documentationConnections and switches on the main boardOur  Factory /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
