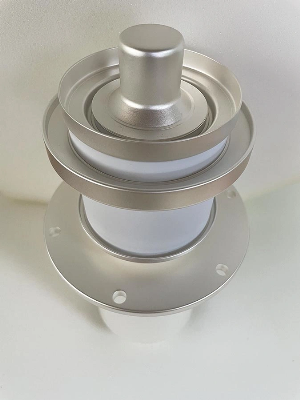

High Frequency Ceramic Vacuum Electronic Triode (RS3021CJ, RS2048CJ)

RS3021CJ, it is coaxial metal ceramic structure triode, high power triode, cooled by water. The max working frequency 120MHz, the max anode dissipation power 10kW, the anode max oscillating power 20kW. The tube is mainly used in class B RF amplifier and industrial high frequency heating equipments and CO2 laser cutting machines.Electrical CharacteristicsFilament Voltage12.6VFilament Current 380AMutual Conductance(Ia=10A)≥190mA/VAmplification Factor40Interelectrode CapacitancesGrid-Anode60pFGrid-Cathode185pFCathode-Anode3pFWeight15.6kgMax Height410mmMax Diameter¢191mmOperating positionVertical, anode up or downCoolingStemForced airAnodeForced waterWater connection Screw nut.1¼"Max temperature at any point tube envelope240ºCLimit Working Conditions:Frequency100MHzAnode Voltage.16.8kVAnode Current25AAnode input power375kWAnode Dissipation120kWGrid DC Voltage-2000VGrid DC CurrentOn Load7ANo Load8.5AGrid Dissipation3kWGrid Current Impedance10KΩAnode Dissipation81.5kWTypical Operation (Class C conditions):Frequency30MHzOutput Power240kWAnode DC Voltage14kVAnode DC Current23.5AAnode Input Power329kWAnode Dissipation81.5kWAnode Output Power247.5kWGrid DC Voltage-810VOn Load Grid Current6AGrid Dissipation2.6kWDimension(mm)Product PictureProduct DescriptionRS3021CJ is a metal ceramic power triode tube for laser machine designed specifically for industrial applications. This tube uses a coaxial design and metal-ceramic technology. This tube may be operated in CW or pulse modes. For operation in pulse mode, the parameters depend on each equipment characteristics.  We manufacture the following all models.  FC-10FA, FC-10FT, FC-732F, FC-735F, FC-735FT, FC305F, FC311, FC312F, FC620F, FC620FT, FD911S, FD003Z, FD-5S.  FC10FT, FC201F, FC307F, FC307FS, FC308C, FC310C, FC310F, FC502F, FC732F, FC734F, FC735F.  FU-33, FU-833A, 833A, 833C, FU-74F/RY-74B, FU-100F, FU-728F, FU-113F, FU-113FG, FU-998F, FU-5S, FU-62S, FU-610F, FU-610FA, FU-610S, FU-724F, FU-724S, FU-727F, FU-824F, FU-824FA, FU-832F, FU-834F, FU-834FA, FU-836F, FU-924F, FU-924FA, FU-928F, FU-101F, FU-101M, FU-101Z, FU-101C, FU-832C, FU-832FA, FU-832F, FU-832M, FU-917F, FU-917M, FU-307S, FU-74F, FU-250F, FU-252F, FU-946F, FU-947F FU611F, FU612F, FU613F, FU001F, FU104C, FU104Z, FU115F, FU116F, FU252F, FU615F, FU616C, FU617F, FU618F, FU720F, FU820C, FU820F, FU002F, FU617FT, FU-84F, FU-74F, FU-1608C, FU-1608F.  GU84B, GU74B, GU78B.  FM70FT, ML8533, ML8536, YU191B, YU191C, YU-148, YU-108, , YU-148, YU-191B, YL1050, YL1057, YL1631, YL1420, YD1202, YD1212.  BW1184J2F, BW1185J2F, BW1184J, BW1185J, BW1184J2, BW1185J2, BW1608J2F, BW1608J. CQK25-2, CQK50-2.  3CX4500H3, 3CX6000A7, 3CX2500H3, 3CX2500A3, 3CX2500F3, 3CX3000A7, 3CX3000F7, 3CX1500D3, 3CX10000D3, 3CX10000A3, 3CX10000A7, 3CX10000H3, 3CX15000A3, 3CX15000A7, 3CX15000H3, 3CX20000H3, 3CX20000A7, 3CX800A7, 3CPX800A7, 3CX1500A7, 3CPX1500A7, 3CX5000A7, 3CPX5000A7, YU-158.  YC-156, YC-156A, YC-179, YC-236, YC-257.  3CW5000F1, 3CW5000F3, 3CW40000H3, 3CW45000H3, 3CW20000A7, 3CW20000H3,  3CW20000H7, 3CW30000H3, 3CW30000A7, 3CW30000H7.  3CX2500A3, 3CX2500F3, 3CX2500H3, 3CX3000A7, 3CX1500A7, 3CW20000A7.  4CX250B, 4CX250R, 4CX250FG, 4CX800A/RY-74B, 4CX800A, 4CX350A, 4CX350F, 4CX1000A, 4CX1500B, 4CX3500A, 4CW1000A, 4CX1500A, 4CX3000A, 4CX5000A, 4CX5000R, 4CX7500A, 4CX10000D, 4CX10000J, 4CX15000A, 4CX20000C, 4CX20000D, 4CX20000E, 4CV100000C, 4CX250K, 4CX1500A, 4CX3000A, 4CX3500A, 4CX15000A, 4CV100000C, 4CX35000C, 4CX5000A, 5CX1500A.  CTK12-4, CTK12-1, CTK15-2, CTK25-4, CTK35-2, ITK12-1, ITK3-1, ITK5-1, ITK15-2, ITK30-2, ITK60-2, ITK70-2, ITK90-1, ITL12-1, ITL3-1, ITL5-1, ITL9-1, ITL15-2, ITL2-1.  TH5-6, TH6-3A, TH382, TH382, TH584, TH338, TH331, TH537, TH527, TH327, TH582, TH558, TH610, TH375, TH576, TH373, TH328, TH347.  E3061, E3062, E3062E, E3069, E3130.  RS3060CL, RS3060CJ, RS3021CJ, RS3026CJ, RS3040CJ, RS3041CJ, RS3041CJ, RS3040CJ, RS3060CJC, RS3021, RS2048CJ, RS2048CJC, RS1034SK, RS1034SL, RS1072C, RS2054SK.  8560AS, 928F, 836F, 8741, 7T85, 7T69, 8F75R, 7F71RA, 8F68R.  6T51, 6T58RA, 7T62R, 7T62RE, 7T85RB, FU-947F, 7T69RB, 7T84RB, 7T69RB, 8T25RA, 8T85B, 8T85RB, 8T87RB, 8F76R, 8T69JB.  SK300 Socket, SK1300 Socket, SK2210 Socket, SK184 Socket.  CertificationsPackaging & ShippingFAQ  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
