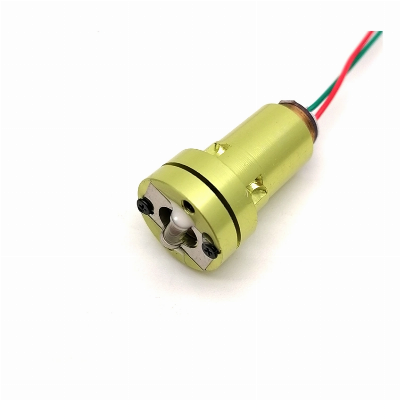

Laser Diode Module 555nm 15MW Laser Level

 Laser Diode Module 555nm 15mw Laser Level Laser Diode Module 555nm 15mw Laser Level is Green, the light is clear and bright, soft and not dazzling The marking is accurate, intuitive and practical, with good stability, simple and convenient operation, and can improve work efficiency. Small size, clear light, large beam angle and high straightness.Model NumberXL-17x35-555L015Wavelength555±4nmnm(Test condition: 10cm from Lens)Output Power15mw(Test condition: 25ºC, 3 minutes)Laser Head Size17*35mmHousing MaterialYellow/Black/Grey Anodized AluminumWeight11.6gOutput Power ModePulsedFan Angle (1/e2 , degree)120°Line Width @ 7m (mm)≤4PCB TypeACC-TTL(50% duty cycle - it cannot be adjusted,110Hz)VoltageDC 2.6~3.0VOperating Current at 3V220-430mAHousing IsolationYesESD ProtectionYesWire Length120±10mmWire Type28#AWGConnector ModelNoneReverse Voltage ProtectionYesOperating Temperature-10~50ºCStorage Temperature-40~60ºCEnvironmental Humidity (RH, %)5~85%Lifetime (MTTF at 25ºC)10000h555nm 15mw 360 Degree Industrial Grade module For Laser Level structure size is 17*35mm, and comes with a locking ring, which has strong anti-interference and high stability. Packaging & Shipping    Our Advantages    FAQ                /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
