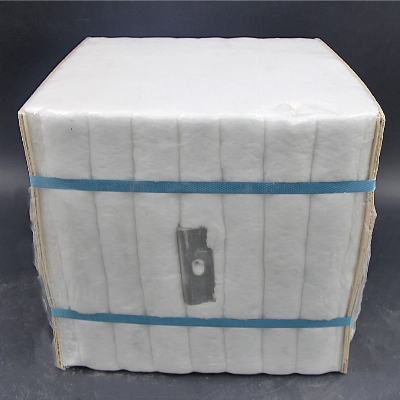

High Temperature Oven Ceramic Fiber Laser Module

LUYANGWOOL® Ceramic Fiber Module / RCF ModuleLuyangwool® ceramic fiber module is made from compressed ceramic fiber blanket. The module is specially designed to meet the thermal insulation requirements of industrial furnaces in some special thermal conditions. Luyangwool® ceramic fiber module is produced with various anchoring systems to enable quick, easy and efficient installation in most furnace linings. Ceramic fiber module linings can increase the furnace productivity and reduce the maintenance costs. FeaturesFast and easy installationFast and easy repairFast temperature cyclingLow installation and repair costsLow heat storage Typical ApplicationsPetrochemicalRefining, iron and steelNon ferrousCeramic and glassHeat treatment Typical ParametersDescriptionLUYANGWOOL® STD MODULELUYANGWOOL® HP MODULELUYANGWOOL® HA MODULELUYANGWOOL® HZ MODULEClassification Temperature (ºC )1260126013501430Chemical Composition (%)Al2O3≥43≥44≥52≥35SiO2≥54≥55≥47≥49ZrO2---≥15ColorWhiteWhiteWhiteWhiteDensity (kg/m³)160-220160-220160-220160-220Permanent Linear Shrinkage (%)1000ºC x 24h ≤2.51100ºC x 24h ≤2.51200ºC x 24h ≤3.01350ºC x 24h ≤3.0Thermal Conductivity (W/m·K)400ºC0.100.100.100.10600ºC0.180.170.160.15800ºC0.200.200.200.191000ºC0.270.260.260.26 /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
