DescriptionMCP1703T-3302E/CB: LDO Regulator Pos 3.3V 0.25A 3-Pin SOT-23A T/RMfr. Part#: MCP1703T-3302E/CBMfr.: MICROCHIPDatasheet: (e-mail or chat us for PDF file)ROHS Status: Quality: 100% OriginalWarranty: ONE YEAR Mounting Style:SMD/SMT Package / Case:SOT-23-3 Output Voltage:3.3 V Output Current:250 mA Number of Outputs:1 Output Polarity:Positive Quiescent Current:5 uA Input Voltage, Min:2.7 V Input Voltage, Max:16 V Output Type:Fixed Minimum Operating Temperature:- 40 C Maximum Operating Temperature:+ 125 C Dropout Voltage:330 mV Qualification:AEC-Q100 Series:MCP1703 Packaging:Reel Packaging:Cut Tape Packaging:Reel Brand:Microchip Technology Dropout Voltage - Max:650 mV at 250 mA Height:1.3 mm (Max) Ib - Input Bias Current:2 uA Length:3.1 mm (Max) Line Regulation:0.1 % / V Load Regulation:1 % Product Type:LDO Voltage Regulators Factory Pack Quantity:3000 Subcategory:PMIC - Power Management ICs Voltage Regulation Accuracy:2 % Width:1.8 mm (Max) Unit Weight:0.001587 ozThe MCP1703 is a family of CMOS low dropout (LDO) voltage regulators that can deliver up to 250 mA of current while consuming only 2.0 µA of quiescent current (typical). The input operating range is specified from 2.7V to 16.0V, making it an ideal choice for two to six primary cell battery-powered applications, 9V alkaline and one or two cell Li-Ion-powered applications.The MCP1703 is capable of delivering 250 mA with only 625 mV (typical) of input to output voltage differential (VOUT = 2.8V). The output voltage tolerance of the MCP1703 is typically ±0.4% at +25°C and ±3% maximum over the operating junction temperature range of -40°C to +125°C. Line regulation is ±0.1% typical at +25°C.Output voltages available for the MCP1703 range from 1.2V to 5.5V. The LDO output is stable when using only 1 µF of output capacitance. Ceramic, tantalum or aluminum electrolytic capacitors can all be used for input and output. Overcurrent limit and overtemperature shutdown provide a robust solution for any application.Package options include the SOT-223-3, SOT-23A, and SOT-89-3.Key Features2.0 µA Typical Quiescent CurrentInput Operating Voltage Range: 2.7V to16.0V250 mA Output Current for Output Voltages ≥ 2.5V200 mA Output Current for Output Voltages < 2.5VLow Drop Out Voltage, 625 mV typical @ 250 mA for VR = 2.8V0.4% Typical Output Voltage ToleranceStandard Output Voltage Options (1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 4.0V, 5.0V)Output voltage range 1.2V to 5.5V in 0.1V increments (50 mV increments available upon request)Stable with 1.0 µF to 22 µF output capacitanceShort-Circuit ProtectionOver temperature ProtectionTape and Reel Packaging Why choosing usLocated in Shenzhen, the electronic market center of China.100% guarantee components quality: Genuine Original.Sufficient stock on your urgent demand.Sophisticated colleagues help you solve problems to reduce your risk with on-demand manufacturingFaster shipment: In stock components can ship the same day .24 Hours service Notice:Product images are for reference only.You can contact sales person to apply for a better price. For more products, Pls do not hesitate to contact our Sales team. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1

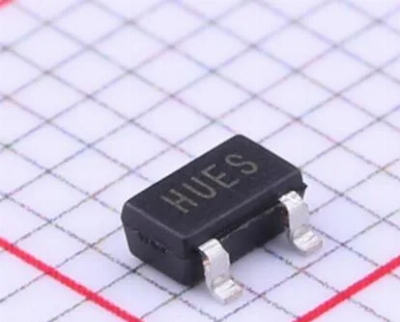

Related products about MCP1703T-3302E/CB MCP1703 Series Fixed Output Surface Mount LDO Regulator
-
