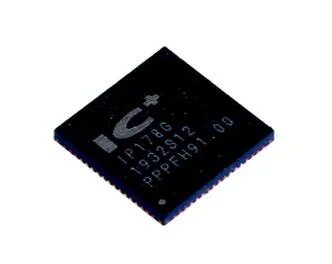

IP178G IP178GI 8 Port 10/100 Ethernet Integrated Switch Controller IC

DescriptionIP178G:IP178Gx is fabricated with advanced CMOS (85nm) technology and only requires a 3.3V single power supply. Mfr. Part#: IP178GMfr.: ICPLUSDatasheet: (e-mail or chat us for PDF file)ROHS Status: Quality: 100% OriginalWarranty: ONE YEARz 8 port Embedded 10/100 PHY Switch Controller z IP178G Support 8 100BaseTX z IP178GH/GI support 8 100BaseTX or 6 100Base TX + 2 FX z 100M PHY support IEEE802.3az at full duplex z 10M PHY only support 10BaseTe z Support Auto MDI-MDIX function z Power Management Tool (PWMT®) - APS, auto-power saving while Link-off - IEEE 802.3az protocol based power saving - WOL+®, light traffic power saving - PWD, force-off power saving z Support Auto Factory Test (AFT®) z Single Power 3.3V supply z Built in 1.1V core voltage LDO Regulator z Two Priority queues per port z Support 802.1p & DiffServ based QoS z QoS - Port base - 802.1p - IP DiffServ IPV4/IPV6 - TCP/UDP port number - Pins configure ports priority (VIP port) z Support max forwarding packet length 1552/1536 bytes option z Embedded 448K bits packet buffer z Support port mirror function z Support 1k MAC address z Support broadcast storm protection z Support port trunking (Link Aggregation) z Support 16 VLAN (IEEE Std 802.1q) - Port-based/Tagged-based VLAN - Support Port-based insert, remove tag z Built-in 50 ohm resistors for simplifying BOM z 85nm Process z Package and operation temperature - IP178G/GH: 68 Pin QFN, 0~70ºC - IP178GI: 68 Pin QFN, -40~85ºCApplication „ 8 port 10/100 Dumb switch „ 6TX+2FX Dumb Switch or 7TX + 1FX Dumb Switch Why choosing usLocated in Shenzhen, the electronic market center of China.100% guarantee components quality: Genuine Original.Sufficient stock on your urgent demand.Sophisticated colleagues help you solve problems to reduce your risk with on-demand manufacturingFaster shipment: In stock components can ship the same day .24 Hours service  Notice:Product images are for reference only.You can contact sales person to apply for a better price. For more products, Pls do not hesitate to contact our Sales team. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
