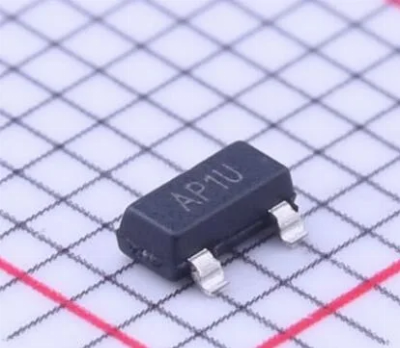

MCP9701AT-E/TT Temperature Sensor Analog Automotive AEC-Q100

DescriptionMCP9701AT-E/TT: Board Mount Temperature Sensors Linear Active Thermister ICMfr. Part#: MCP9701AT-E/TTMfr.: MICROCHIPDatasheet: (e-mail or chat us for PDF file)ROHS Status: Quality: 100% OriginalWarranty: ONE YEAROutput Type:Analog Configuration:Local Accuracy:+/- 2 C Supply Voltage - Min:3.1 V Supply Voltage - Max:5.5 V Interface Type:- Minimum Operating Temperature:- 10 C Maximum Operating Temperature:+ 125 C Shutdown:Shutdown Mounting Style:SMD/SMT Package / Case:SOT-23-3 Qualification:AEC-Q100 Packaging:Reel Packaging:Cut Tape Packaging:Reel Brand:Microchip Technology Gain:19.5 mV / C Operating Supply Current:6 uA Output Current:100 uA Product:Temperature Sensors Product Type:Temperature Sensor ICs Series:MCP9701 Factory Pack Quantity:3000 Subcategory:Sensors Type:Temperature Sensor Unit Weight:0.001482 oz The MCP9701A family of Linear Active Thermistor™ Intergrated Circuit (IC) is an analog temperature sensor that converts temperature to analog voltage. It's a low-cost, low-power sensor with an accuracy of ±2°C from 0°C to +70°C (MCP9700A/9701A) ±4°C from 0°C to +70°C (MCP9700/9701) while consuming 6 µA (typical) of operating current.Unlike resistive sensors (such as thermistors), the Linear Active Thermistor IC does not require an additional signal-conditioning circuit. Therefore, the biasing circuit development overhead for thermistor solutions can be avoided by implementing this low-cost device. The voltage output pin (VOUT) can be directly connected to the ADC input of a microcontroller. The MCP9700/9700A and MCP9701/9701A temperature coefficients are scaled to provide a 1°C/bit resolution for an 8-bit ADC with a reference voltage of 2.5V and 5V, respectively.The MCP9701/9701A provide a low-cost solution for applications that require measurement of a relative change of temperature. When measuring relative change in temperature from +25°C, an accuracy of ±1°C (typical) can be realized from 0°C to +70°C. This accuracy can also be achieved by applying system calibration at +25°C.In addition, this family is immune to the effects of parasitic capacitance and can drive large capacitive loads. This provides Printed Circuit Board (PCB) layout design flexibility by enabling the device to be remotely located from the microcontroller. Adding some capacitance at the output also helps the output transient response by reducing overshoots or undershoots. However, capacitive load is not required for sensor output stability.Key FeaturesTiny Analog Temperature SensorAvailable Packages: - SC70-5, SOT-23-5, TO-92-3Wide Temperature Measurement Range: - -40°C to +125°C (Extended Temperature) - -40°C to +150°C (High Temperature)Accuracy: - ±2°C (max.), 0°C to +70°COptimized for Analog-to-Digital Converters (ADCs): - 19.5 mV/°C (typical)Wide Operating Voltage Range: - Vdd = 3.1V to 5.5VLow Operating Current: 6 µA (typical)Optimized to Drive Large Capacitive LoadsTape and Reel Packaging    Why choosing usLocated in Shenzhen, the electronic market center of China.100% guarantee components quality: Genuine Original.Sufficient stock on your urgent demand.Sophisticated colleagues help you solve problems to reduce your risk with on-demand manufacturingFaster shipment: In stock components can ship the same day .24 Hours service  Notice:Product images are for reference only.You can contact sales person to apply for a better price. For more products, Pls do not hesitate to contact our Sales team. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
