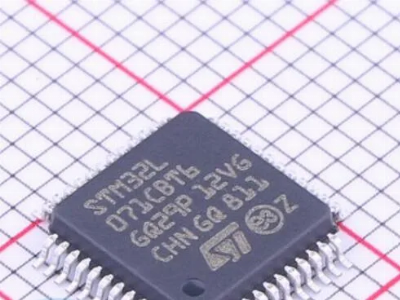

STM32L071CBT6 MCU 32BIT 128KB FLASH 48LQFP IC

DescriptionSTM32L071CBT6: ARM Microcontrollers - MCU Ultra-low-power Arm Cortex-M0+ MCU 128-Kbytes of Flash , 32 MHz CPUMfr. Part#: STM32L071CBT6Mfr.: STMICRODatasheet: (e-mail or chat us for PDF file)ROHS Status: Quality: 100% OriginalWarranty: ONE YEAR   Series:STM32L071CB Mounting Style:SMD/SMT Package / Case:LQFP-48 Core:ARM Cortex M0+ Program Memory Size:128 kB Data Bus Width:32 bit ADC Resolution:12 bit Maximum Clock Frequency:32 MHz Number of I/Os:40 I/O Data RAM Size:20 kB Supply Voltage - Min:1.8 V Supply Voltage - Max:3.6 V Minimum Operating Temperature:- 40 C Maximum Operating Temperature:+ 85 C Packaging:Tray Brand:STMicroelectronics Data RAM Type:SRAM Data ROM Size:6 kB Data ROM Type:EEPROM Interface Type:I2C, I2S / SPI, LPUART, USART Moisture Sensitive:Yes Number of ADC Channels:13 Channel Number of Timers/Counters:7 Timer Processor Series:STM32L071 Product:MCU Product Type:ARM Microcontrollers - MCU Program Memory Type:Flash Factory Pack Quantity:1500 Subcategory:Microcontrollers - MCU Tradename:STM32 Watchdog Timers:Watchdog Timer, Windowed Unit Weight:0.091712 oz  The access line ultra-low-power STM32L071xx microcontrollers incorporate the highperformance Arm Cortex-M0+ 32-bit RISC core operating at a 32 MHz frequency, a memory protection unit (MPU), high-speed embedded memories (up to 192 Kbytes of Flash program memory, 6 Kbytes of data EEPROM and 20 Kbytes of RAM) plus an extensive range of enhanced I/Os and peripherals. The STM32L071xx devices provide high power efficiency for a wide range of performance. It is achieved with a large choice of internal and external clock sources, an internal voltage adaptation and several low-power modes. The STM32L071xx devices offer several analog features, one 12-bit ADC with hardware oversampling, two ultra-low-power comparators, several timers, one low-power timer (LPTIM), four general-purpose 16-bit timers and two basic timer, one RTC and one SysTick which can be used as timebases. They also feature two watchdogs, one watchdog with independent clock and window capability and one window watchdog based on bus clock. Moreover, the STM32L071xx devices embed standard and advanced communication interfaces: up to three I2Cs, two SPIs, one I2S, four USARTs, a low-power UART (LPUART), . The STM32L071xx also include a real-time clock and a set of backup registers that remain powered in Standby mode. The ultra-low-power STM32L071xx devices operate from a 1.8 to 3.6 V power supply (down to 1.65 V at power down) with BOR and from a 1.65 to 3.6 V power supply without BOR option. They are available in the -40 to +125 °C temperature range. A comprehensive set of power-saving modes allows the design of low-power applications.        Why choosing usLocated in Shenzhen, the electronic market center of China.100% guarantee components quality: Genuine Original.Sufficient stock on your urgent demand.Sophisticated colleagues help you solve problems to reduce your risk with on-demand manufacturingFaster shipment: In stock components can ship the same day .24 Hours service  Notice:Product images are for reference only.You can contact sales person to apply for a better price. For more products, Pls do not hesitate to contact our Sales team. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
