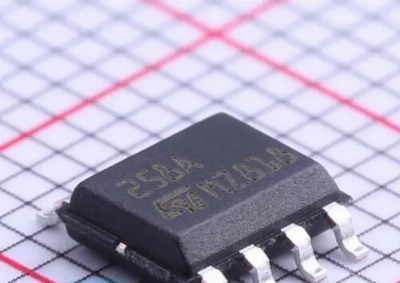

LM258ADT LM258 Series 1.1MHz Low Power Dual Operational Amplifier IC

DescriptionLM258ADT: Operational Amplifiers - Op Amps Dual Low PowerMfr. Part#: LM258ADTMfr.: STMICRODatasheet: (e-mail or chat us for PDF file)ROHS Status: Quality: 100% OriginalWarranty: ONE YEAR   Mounting Style:SMD/SMT Package / Case:SOIC-8 Number of Channels:2 Channel Supply Voltage - Max:30 V, +/- 15 V GBP - Gain Bandwidth Product:1.1 MHz Output Current per Channel:40 mA SR - Slew Rate:600 mV/us Vos - Input Offset Voltage:3 mV Supply Voltage - Min:3 V, +/- 1.5 V Minimum Operating Temperature:- 40 C Maximum Operating Temperature:+ 105 C Ib - Input Bias Current:50 nA Operating Supply Current:1.2 mA Shutdown:No Shutdown CMRR - Common Mode Rejection Ratio:85 dB en - Input Voltage Noise Density:55 nV/sqrt Hz Series:LM258A Packaging:Reel Packaging:Cut Tape Packaging:Reel Amplifier Type:Low Power Amplifier Brand:STMicroelectronics Dual Supply Voltage:+/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V Height:1.65 mm Length:5 mm Maximum Dual Supply Voltage:+/- 15 V Minimum Dual Supply Voltage:+/- 1.5 V Operating Supply Voltage:3 V to 30 V, +/- 1.5 V to +/- 15 V Pd - Power Dissipation:500 mW (1/2 W) Product:Operational Amplifiers Product Type:Op Amps - Operational Amplifiers PSRR - Power Supply Rejection Ratio:65 dB Factory Pack Quantity:2500 Subcategory:Amplifier ICs Supply Type:Single, Dual Technology:Bipolar Voltage Gain dB:100 dB Width:4 mm Unit Weight:0.017870 oz   These circuits consist of two independent, highgain, internally frequency-compensated op amps, specifically designed to operate from a single power supply over a wide range of voltages. The low-power supply drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp circuits, which can now be more easily implemented in single power supply systems. For example, these circuits can be directly supplied with the standard 5 V, which is used in logic systems and will easily provide the required interface electronics with no additional power supply. In linear mode, the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltage        Why choosing usLocated in Shenzhen, the electronic market center of China.100% guarantee components quality: Genuine Original.Sufficient stock on your urgent demand.Sophisticated colleagues help you solve problems to reduce your risk with on-demand manufacturingFaster shipment: In stock components can ship the same day .24 Hours service  Notice:Product images are for reference only.You can contact sales person to apply for a better price. For more products, Pls do not hesitate to contact our Sales team. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
