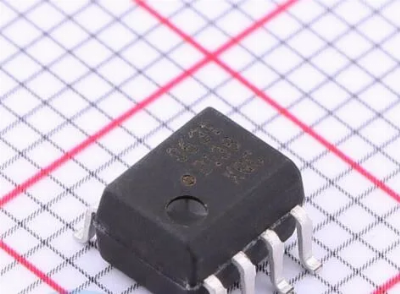

HCPL-0631-500E High Speed Optocouplers 10MBd 2Ch 5mA

DescriptionHCPL-0631-500E : Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 3750Vrms 2 Channel 10kV/µs CMTI 8-SO Tall Mfr. Part#:   HCPL-0631-500EMfr.: AVAGODatasheet: (e-mail or chat us for PDF file)ROHS Status: Quality: 100% OriginalWarranty: ONE YEAR  Product Status Active   Number of Channels 2   Inputs - Side 1/Side 2 2/0   Voltage - Isolation 3750Vrms   Common Mode Transient Immunity (Min) 10kV/µs   Input Type DC   Output Type Open Collector, Schottky Clamped   Current - Output / Channel 50 mA   Data Rate 10MBd   Propagation Delay tpLH / tpHL (Max) 100ns, 100ns   Rise / Fall Time (Typ) 24ns, 10ns   Voltage - Forward (Vf) (Typ) 1.5V   Current - DC Forward (If) (Max) 15mA   Voltage - Supply 4.5V ~ 5.5V   Operating Temperature -40°C ~ 85°C   Mounting Type Surface Mount   Package / Case 8-SOIC (0.154", 3.90mm Width)   Supplier Device Package 8-SO Tall   Base Product Number HCPL-0631 6N137, HCPL-26xx/06xx/4661, HCNW137/26x1 are optically coupled gates that combine a GaAsP light emitting diode and an integrated high gain photo detector. An enable input allows the detector to be strobed. The output of the detector IC is an open collector Schottky-clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification up to 15,000 V/µs at Vcm = 1000V. This unique design provides maximum AC and DC circuit isolation while achieving TTL compatibility. The optocoupler AC and DC operational parameters are guaranteed from - 40°C to +85°C allowing trouble-free system performanceApplicationsIsolated line receiverComputer-peripheral interfacesMicroprocessor system interfacesDigital isolation for A/D, D/A conversionSwitching power supplyInstrument input/output isolationGround loop eliminationPulse transformer replacementPower transistor isolation in motor drivesIsolation of high speed logic systems    Why choosing usLocated in Shenzhen, the electronic market center of China.100% guarantee components quality: Genuine Original.Sufficient stock on your urgent demand.Sophisticated colleagues help you solve problems to reduce your risk with on-demand manufacturingFaster shipment: In stock components can ship the same day .24 Hours service  Notice:Product images are for reference only.You can contact sales person to apply for a better price. For more products, Pls do not hesitate to contact our Sales team.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
