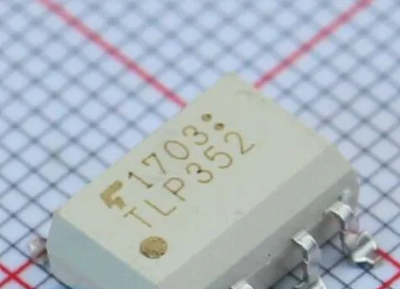

TLP352(TP1,F Optocoupler Drive Totem-Pole 1-CH 30V 1000V

DescriptionTLP352(TP1,F :  2.5A Gate Driver Optical Coupling 3750Vrms 1 Channel 8-SMD Mfr. Part#:  TLP352(TP1,FMfr.: TOSHIBADatasheet: (e-mail or chat us for PDF file)ROHS Status: Quality: 100% OriginalWarranty: ONE YEAR  Product Status Active   Technology Optical Coupling   Number of Channels 1   Voltage - Isolation 3750Vrms   Common Mode Transient Immunity (Min) 20kV/µs   Propagation Delay tpLH / tpHL (Max) 200ns, 200ns   Pulse Width Distortion (Max) 50ns   Rise / Fall Time (Typ) 15ns, 8ns   Current - Output High, Low 2A, 2A   Current - Peak Output 2.5A   Voltage - Forward (Vf) (Typ) 1.55V   Current - DC Forward (If) (Max) 20 mA   Voltage - Output Supply 15V ~ 30V   Operating Temperature -40°C ~ 125°C   Mounting Type Surface Mount   Package / Case 8-SMD, Gull Wing   Supplier Device Package 8-SMD   Approval Agency CSA, cUL, UL   Base Product Number TLP352Applications • Industrial Inverters • MOSFET Gate Drivers • IGBT Gate Drivers • Induction Cooktop and Home AppliancesThe TLP352 is a photocoupler in a DIP8 package that consists of a GaA ℓAs infrared light-emitting diode (LED) optically coupled to an integrated high-gain, high-speed photodetector IC chip. It provides guaranteed performance and specifications at temperatures up to 125 ºC. The TLP352 has an internal Faraday shield that provides a guaranteed Common-mode transient immunity of ±20 kV/ µs. It has a totem-pole output that can both sink and source current. The TLP352 is ideal for IGBT and power MOSFET gate drive.     Why choosing usLocated in Shenzhen, the electronic market center of China.100% guarantee components quality: Genuine Original.Sufficient stock on your urgent demand.Sophisticated colleagues help you solve problems to reduce your risk with on-demand manufacturingFaster shipment: In stock components can ship the same day .24 Hours service  Notice:Product images are for reference only.You can contact sales person to apply for a better price. For more products, Pls do not hesitate to contact our Sales team. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
